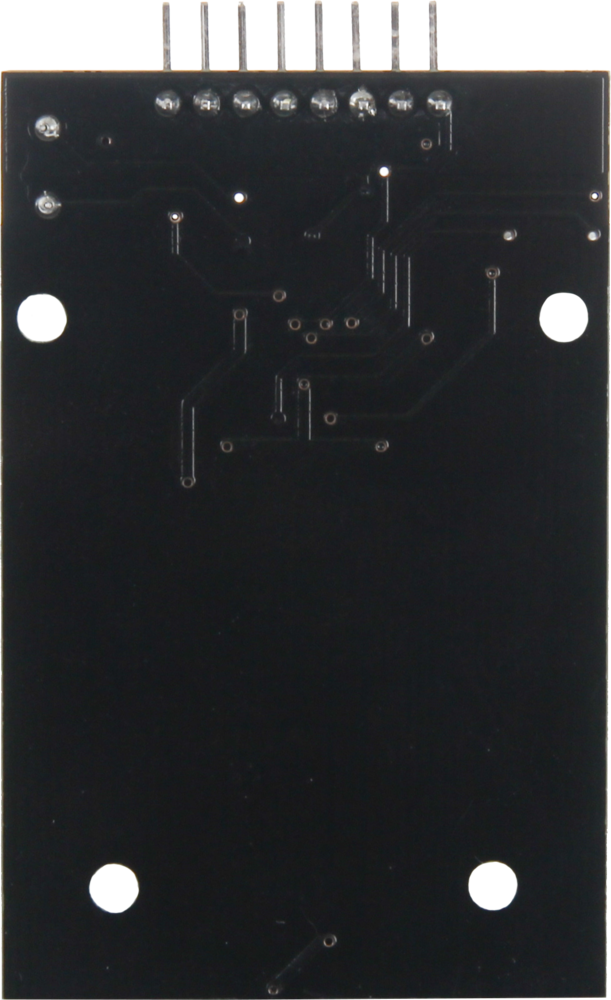

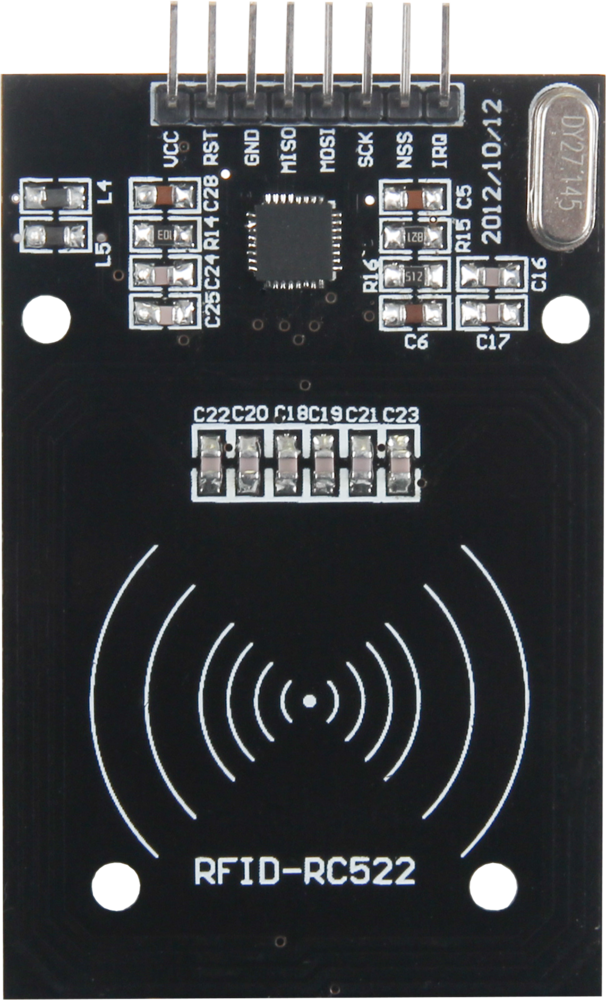

RFID module

The RFID module is equiped with an integrated NXP MFRC-522 and communicates with SPI. It is based on the Mifare-protocol and allows the reading and writing of RFID-tags.

Specifications

Frequency

13.56 MHz

Communication

SPI

Supply voltage

3.3 V

RFID Protocol

Mifare

Compatible to

Raspberry Pi, Arduino, BBC micro:bit, Raspberry Pi Pico

Dimensions

40 x 60 x 8 mm

Weight

24 g

Items Shipped

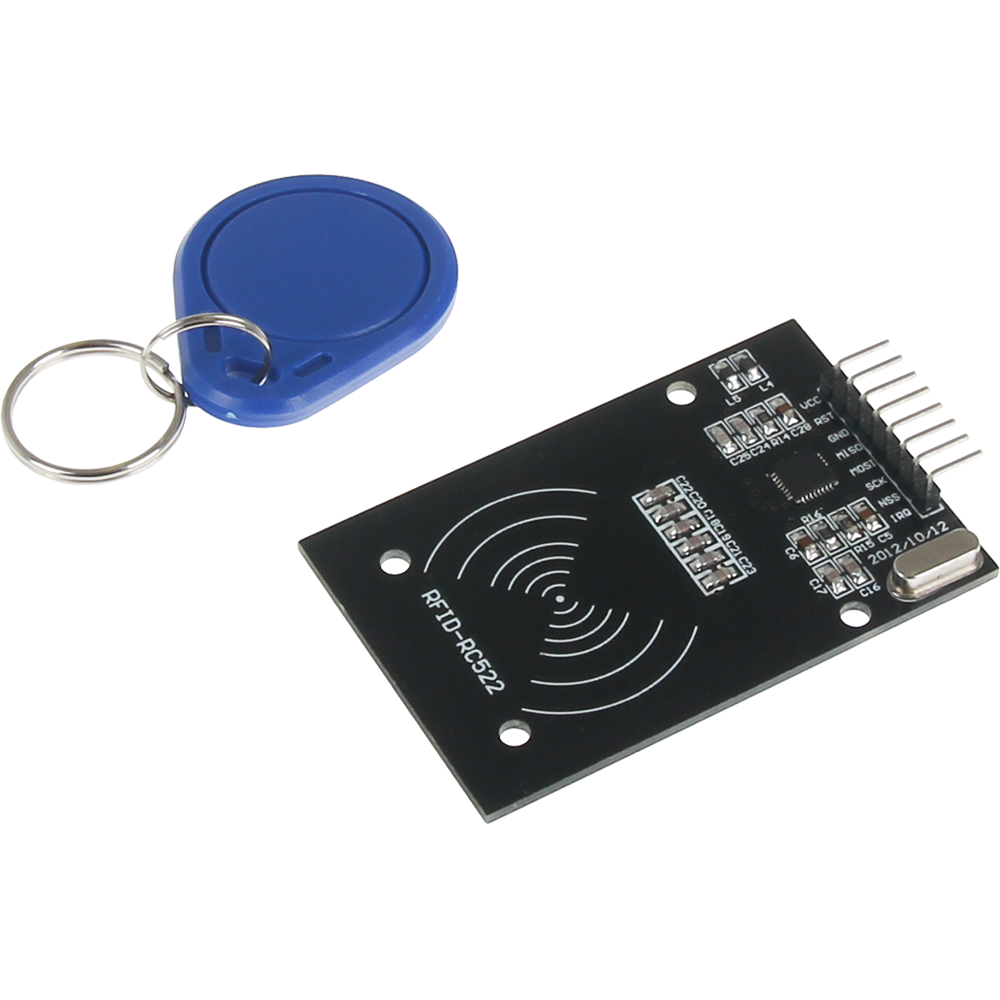

Module, RFID Chip, RFID Card

EAN

4250236813158

Article No.

SBC-RFID-RC522

Downloads

• SBC-RFID-RC522 Datasheet (German) - 2023.09.11 - 391,31 KB
• SBC-RFID-RC522 Datasheet (English) - 2023.09.11 - 384,28 KB
• SBC-RFID-RC522 Manual (German) - 2023.09.11 - 2,1 MB
• SBC-RFID-RC522 Manual (English) - 2023.09.11 - 1,7 MB
