DMSO2D72

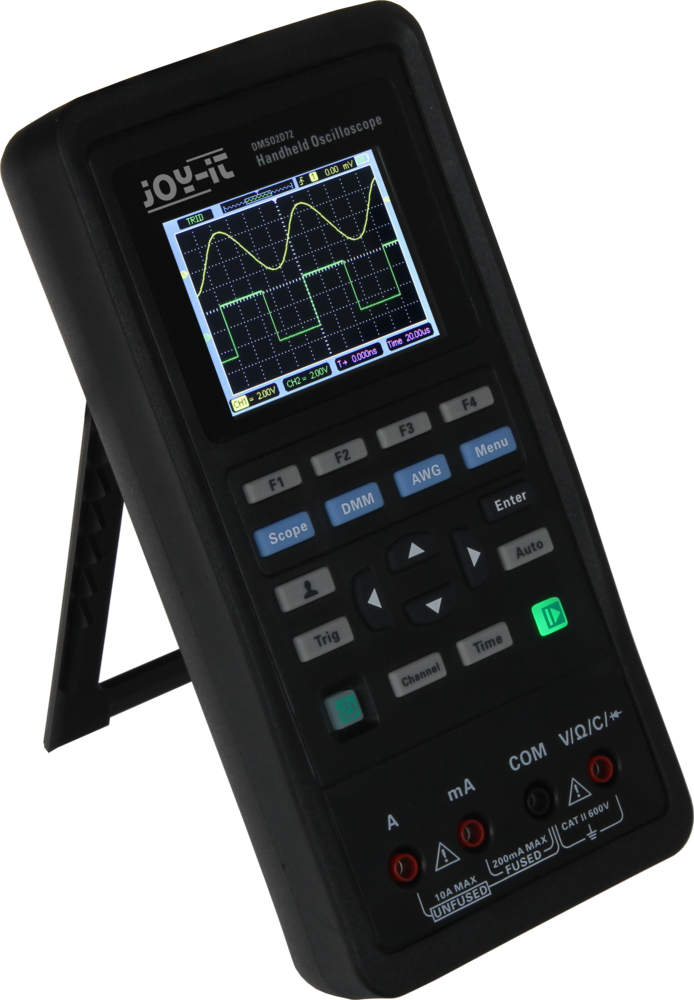

The Joy-IT "DMSO2D72" is your ideal companion for the workshop and outdoor use.

It combines a 2-channel oscilloscope, a signal generator for any wave type as well as a multimeter with 6 different measurement types in one device and serves all functions you expect from individual devices.

Joy-IT has placed particular emphasis on simple, clear and practical handling in order to make work as pleasant as possible for the user.

For this the DMSOD72 is equipped with a "one-button" auto measuring function and a "one-button" page out. In addition, 2 signals can be compared directly on the 2.8" 65K colour LCD display.

The power supply is provided by two 18650 lithium batteries, which are included in the scope of supply and allow a continuous operation of one day as well as a standby time of up to 8 weeks. Furthermore, operation via the USB-C interface is also possible, during which the batteries are charged simultaneously.

In order to protect the device perfectly in "outdoor use", the DMSO2D72 was equipped with a silicone sheath, which offers protection against shocks, dirt and heat.

The extensive and very user-friendly software is available in German, English and French and can be switched easily on the device.

You will also be impressed by the PC software, which provides you with a multitude of functions with very high ease of use.

Specifications

Functions

2-channel-oscilloscope, signal generator for arbitrary wave types, 6 multimeter measuring modes

Display type

2,8 Inch 64K color-TFT-LCD

Display resolution

320 x 240 Pixels

Display settings

Adjustable background brightness, backlight duration, auto power off time

Protective Case

Silicon cover, good impact resistance, outstanding heat resistance, easy to disassemble

Special Features

mobile use through battery operation, 3 in 1 device (oscilloscope, signal generator, multimeter), 3 languages (German, English, French)

Assembly/ Stand function

45° suspension bracket

Interface

USB type C for data/power

Charging current

5 V / 2 A

Charging durance @ 2A

Full recharge after 2 h

Rechargeable battery

2x 18650 Lithium

Battery life in use

A full day

Battery life in Standby

Up to eight weeks

Self calibration

After long non-usage

PC software support

Windows 7/8/10 32 & 64 bit

Oscilloscope Specifications

Oscilloscope with Storage function

Sampling rate

Single channel 250 MSa/s
Dual Channel 125 MSa/S

Bandwidth

70 MHz

Vertical Resolution

10 mV - 10 V

Automatic Measurement of

Frequency and Amplitude

Manual cursor measurement

Voltage and time

Channels

2+ DMM + AWG

Output impedance (DC)

25 pF ± 3pF ; 1 MΩ ±2%

Maximum input voltage

150 V RMS

Signal generator:

Sampling rate

250 MSa/s

Vertical Resolution

12 bits

Waveforms

Sine, square, triangle, trapezoid, and many more

Sine

1Hz - 25 MHz

Square

1Hz - 10 MHz

Triangular

1Hz - 1MHz

Trapezoid

1Hz - 5MHz

Frequency resolution

1 Hz

Output impedance (DC)

50 Ω

Digital Multimeter:

6 multimeter measuring modes

Voltage, current, resistance, capacity, diode, on-off

Items delivered

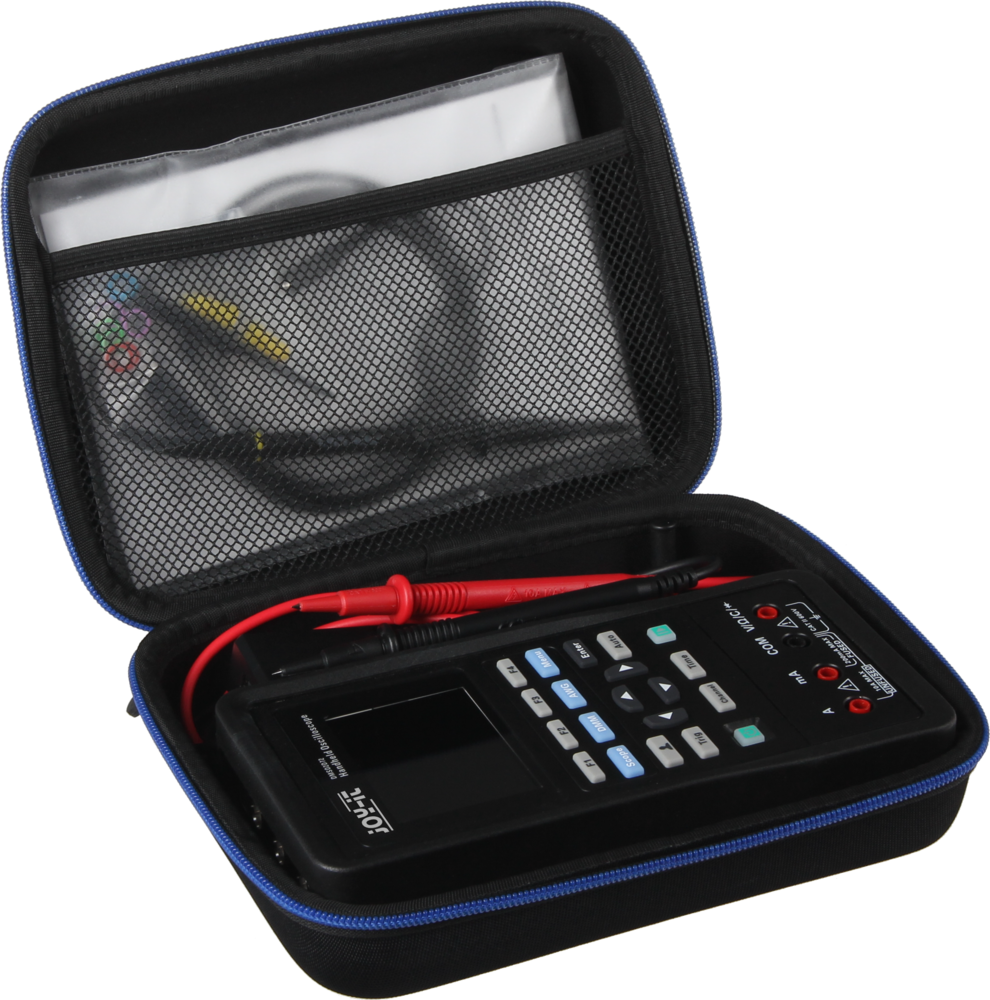

JT-DMSO2D72, 2 batteries (18650, 2600 mAh), passive 80 MHz Probe + accessories, 2x BNC to crocodile clip co-axial cable, 2x DMM test lead, USB to USB type C cable, USB power supply (5 V, 2 A)

Additional information

Dimensions

199 x 98 x 40 mm

Weight

1100 Gramm

EAN

4250236819723

Article No.

JT-DMSO2D72
