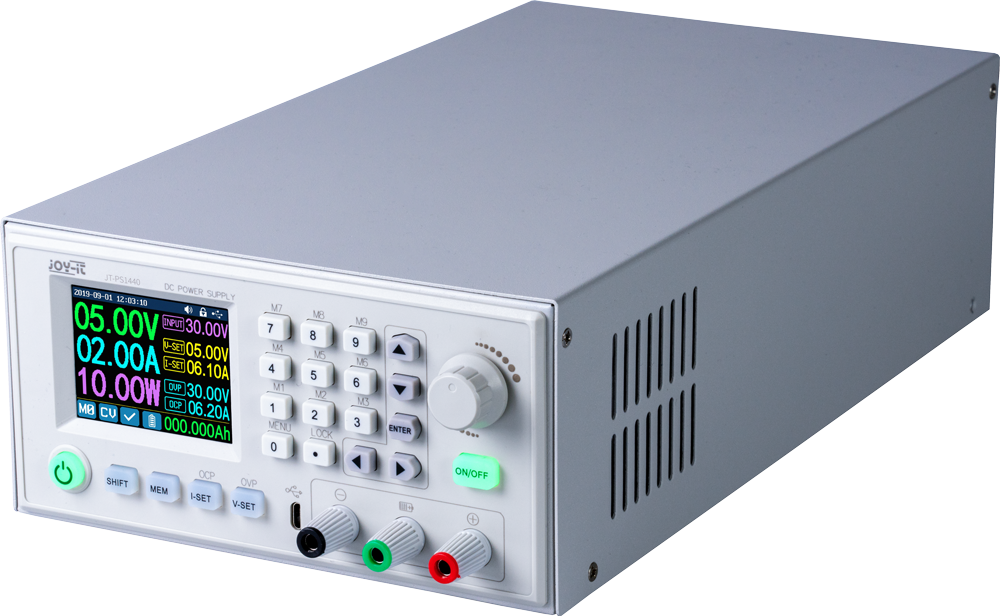

PS1440-C laboratory power supply
The JT-PS1440-C is a high-performance, programmable laboratory power supply designed for demanding development, testing, and experimental tasks. With an output power of up to 1440 W, it provides DC voltages up to 60 V and currents up to 24 A, covering a wide range of applications in workshops, laboratories, and development environments.

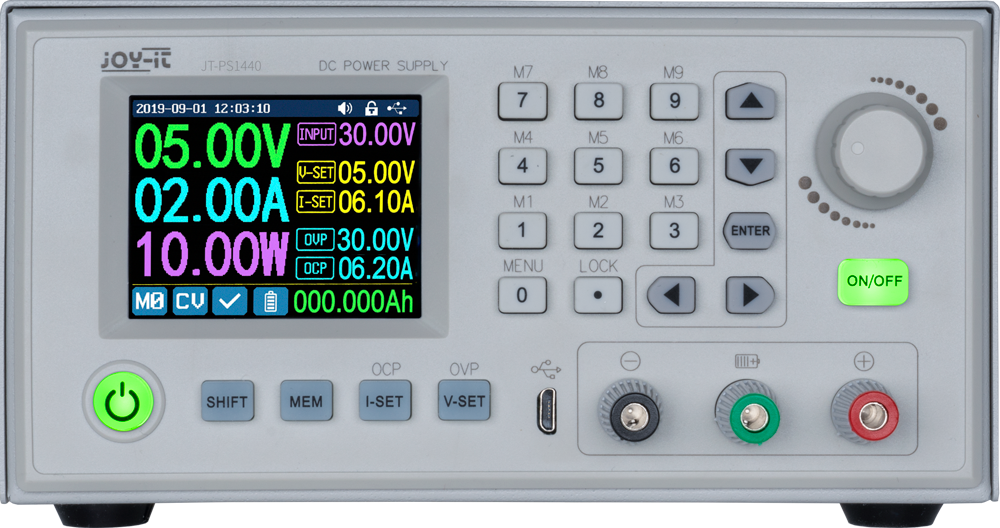

The clearly laid-out control panel allows for convenient adjustment and storage of voltage and current values. Up to nine different settings can be programmed and quickly recalled as needed, significantly simplifying recurring test procedures.
Adjustable protection and limiting functions, such as overcurrent and overvoltage protection, ensure safe operation. In addition, the device features a battery charging function, a built-in real-time clock, and an NTC temperature sensor, making it suitable for even more complex testing and charging applications.
Operation is convenient via the keypad and rotary control, while the 2.4-inch color display clearly shows the most important values. The JT-PS1440-C thus combines high performance with user-friendly operation and extensive features in a complete, readytouse unit.
Specifications
Special functions
Complete device ready for immediate use,
Battery charging function,
Values can be entered conveniently via keypad,
Over current & over voltage protection adjustable,
Integrated RTC,
NTC temperature sensor
Included detailed documentation in English, German & French
Input voltage
230 V
Output voltage
0 - 60 V DC
Output current
0 - 24 A
Output power
0 - 1440 W
Input voltage accuracy
± 1 % + 5 digits
Output voltage accuracy
± 0,3 % + 3 digits
Output current accuracy
± 0,5 % + 5 digits
Battery voltage
± 0,5 % + 3 digits
Input voltage measurement resolution
0,01 V
Output voltage measurement resolution
0,01 V
Current measurement resolution
0,01 V
Battery voltage measurement resolution
0,01 V
Response time in constant voltage mode
2 ms @ 0,1 - 5 A
Load regulation in constant voltage mode
± 0,1 % + 2 digits
Load regulation in constant current mode
± 0,1 % + 3 digits
Measuring range electric charge
0 - 9999,99 Ah
Measuring range energy
0 - 9999,99 Wh
Statistical errors in electric charge & energy
± 2 %
Output ripple
100 mV VPP @ 12 A,
150 mV VPP @ 24 A
Sensor temperature detection range
-10 - 100 °C / 0 - 200 °F
Sensor temperature detection accuracy
± 3 °C / ± 6 °F
Working mode
Step-down operation
Screen brightness setting
Level 0 - 5, 6 levels in total
Permissible working temperature
-10 - 40 °C / 0 - 104 °F
Additional information
Dimensions
170 x 93 x 340 mm
Items shipped
JT-PS1440-C, Power cord, Manual
EAN
425023682626
Article No.
JT-PS1440-C
