Active cooling unit
Active cooling unit

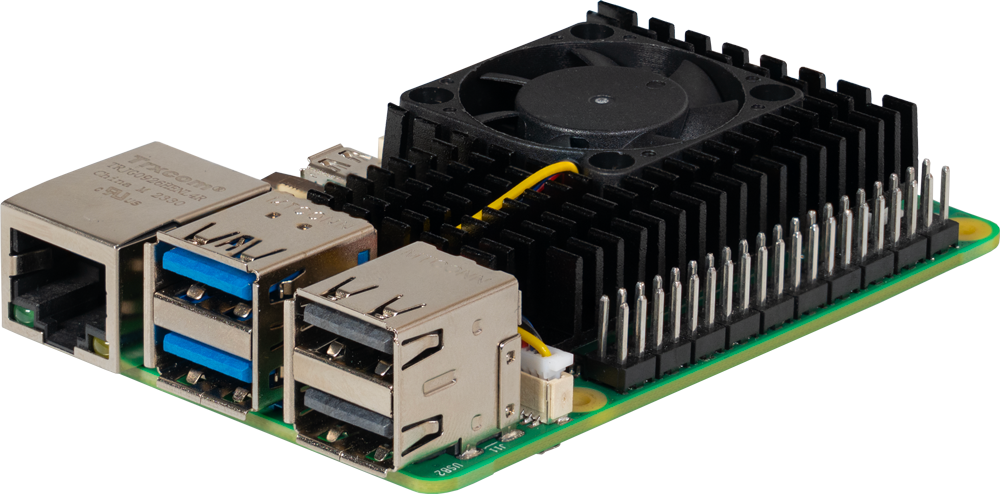

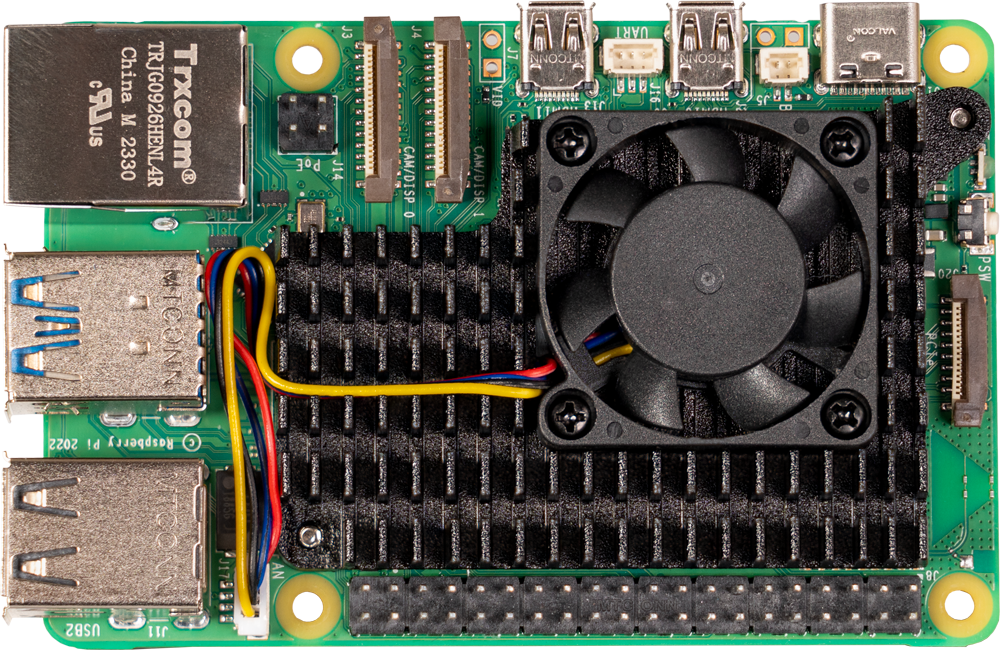

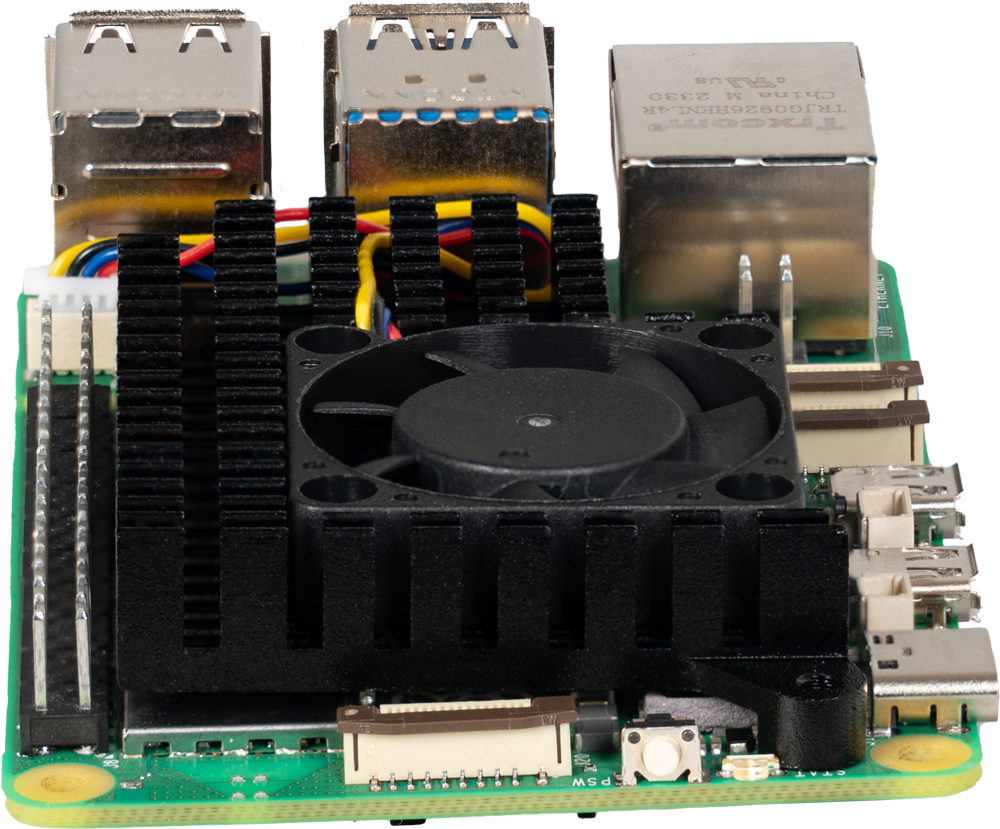

Discover the next generation of cooling technology for the Raspberry Pi 5 with our active cooling unit. This state of the art cooling solution has been specifically designed for the Raspberry Pi 5 and offers a more reliable and stable mounting compared to traditional clip-on systems thanks to its robust screw mounting.
The cooler combines an efficient aluminum heat sink with a powerful fan that ensures constant cooling performance to keep the operating temperature of your Raspberry Pi 5 optimal even under extreme conditions. Ideal for demanding applications and continuous operation, our cooler ensures that your Raspberry Pi 5 always stays cool and powerful.
NOTE: Our enclosures are supplied without logo imprint. However, if you would like a customized imprint, we will be happy to assist you. Contact us directly to discuss your personalized requirements and create a custom design.
Specifications
Specifications
Material
Aluminum
Color
Black
Compatible to
Raspberry Pi 5
Assembly
4 included screws connect housing and pi
Cooling performance
Idle: ~ 33 °C Full load: ~ 55 °C
Special features
Large heat sink with fan, No increase in the room volume, Integrated cooling channels for optimum air flow
Dimensions (fan)
30 x 30 x 10 mm
Dimensions
65 x 45 x 15 mm
Weight
30
Items shipped
EAN
425023682734
Article No.
RB-Heatsink5
Downloads
Downloads
- RB-Heatsink5 Datasheet (German) - 2023.12.05 - 353,84 KB
- RB-Heatsink5 Datasheet (Czech) - 2023.12.05 - 351,8 KB
- RB-Heatsink5 Datasheet (English) - 2023.12.05 - 351,51 KB
- RB-Heatsink5 Datasheet (Spanish) - 2023.12.05 - 353,07 KB
- RB-Heatsink5 Datasheet (French) - 2023.12.05 - 354,15 KB
- RB-Heatsink5 Datasheet (Italian) - 2023.12.05 - 352,87 KB
- RB-Heatsink5 Datasheet (Portuguese) - 2023.12.05 - 353,01 KB
- Manual German 2024-04-25 - 2,27 MB
- Manual English 2024-04-25 - 2,26 MB
