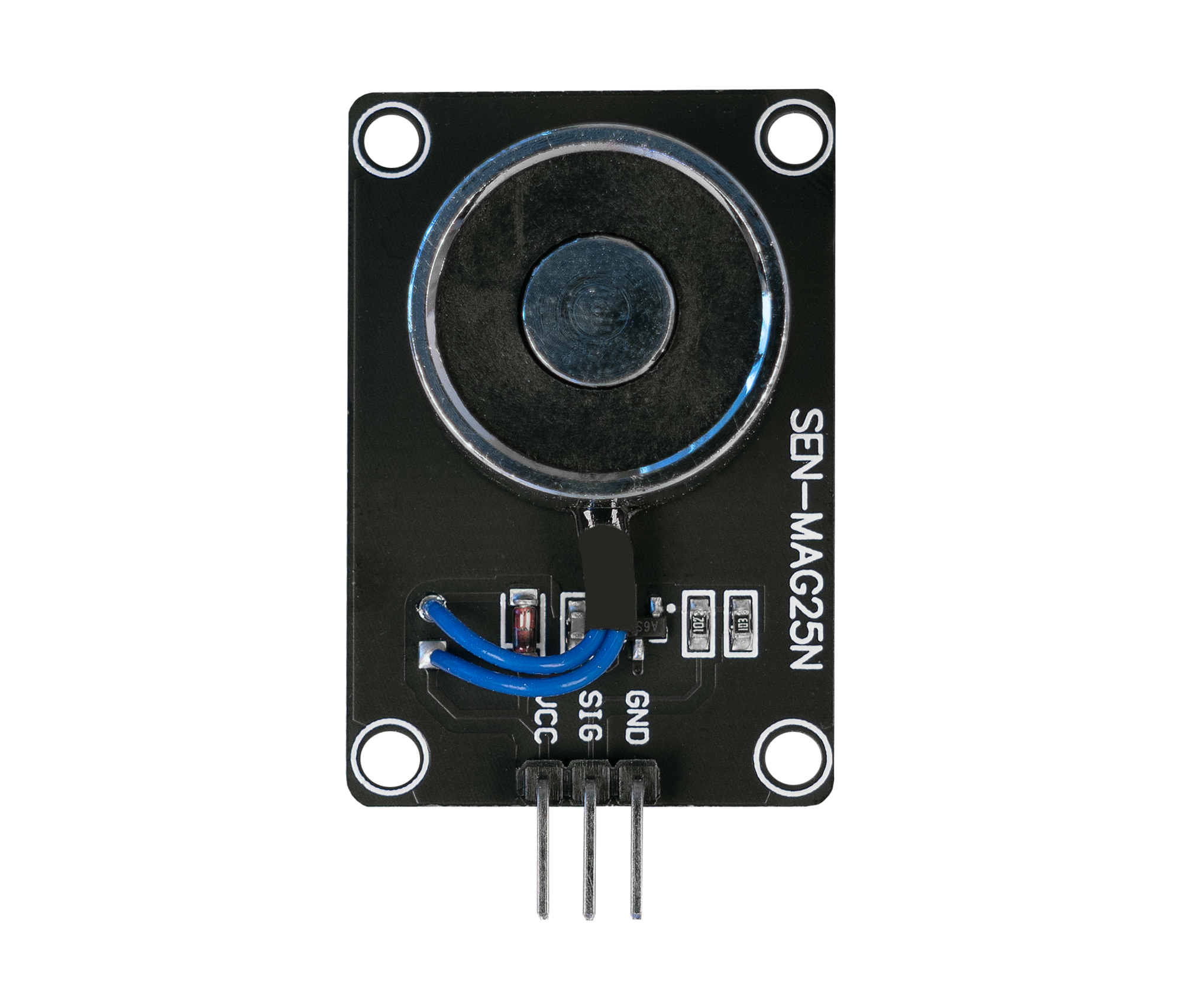

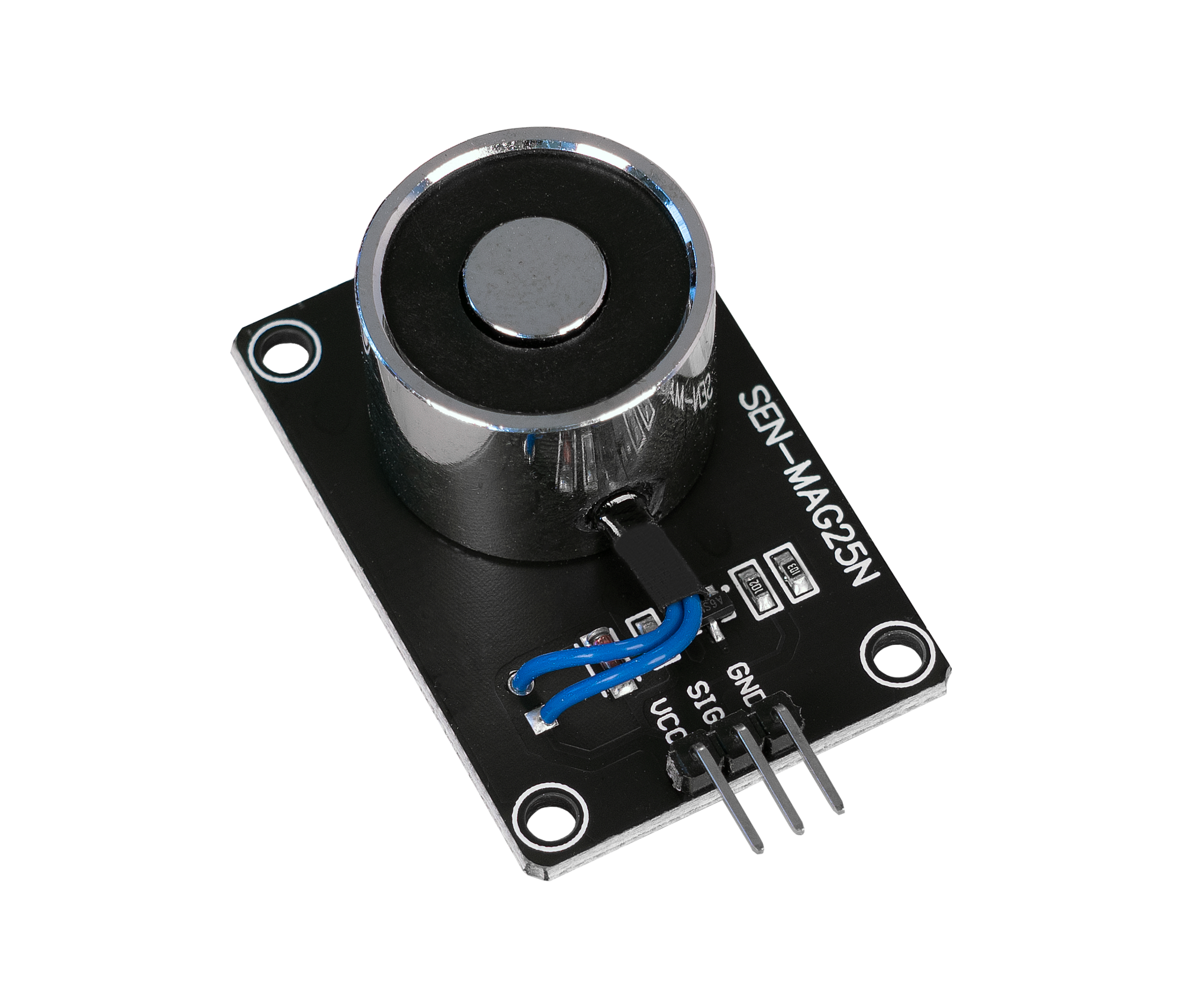

Electromagnet

This electromagnet is suitable for smaller projects (e.g. in automation, microcontrollers or robotics). At 5 V, it generates a force of approx. 25 N (approx. 2.5 kg).

Specifications

Electromagnet

pure copper coil around an iron core

Adhesive force in mass

approx. 2.5 kg (with 5V and approx. 2mm iron)
approx. 1.5 kg (with 5V and approx. 1mm iron)

Application areas

Robotic, Microcontroller, Automation projects

Compatible with

Raspberry Pi (with AD-converter), Arduino. etc.

Special features

low power consumption and rest magnetism, iron shell, strong adhesion

Voltage supply

3.3 - 5 V

3 Pins

GND: Ground
VCC: Voltage supply
SIG: Signal

Control of magnet function

high and low level signal on signal pin

Mounting screw of the magnet

M4

Working current

< 350 mA @ 3.3 V
< 500 mA @ 5 V

Additional information

Dimensions

46 x 27 x 21 mm

Weight

27 g

Items shipped

SEN-MAG25N

EAN

4250236820040

Article No.

SEN-MAG25N
