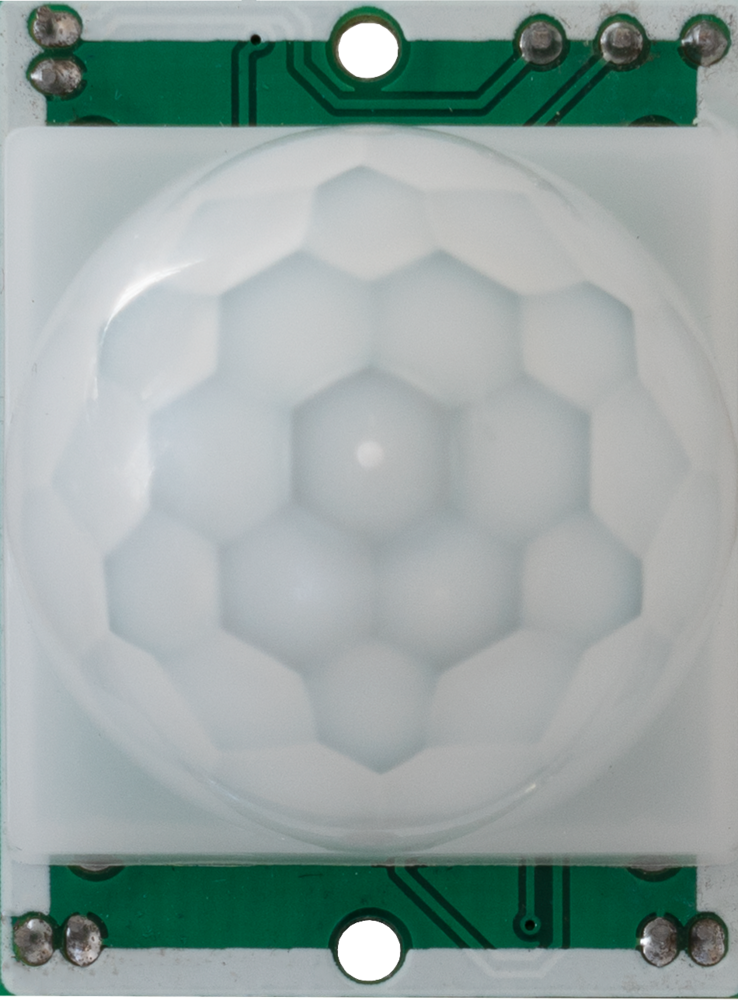

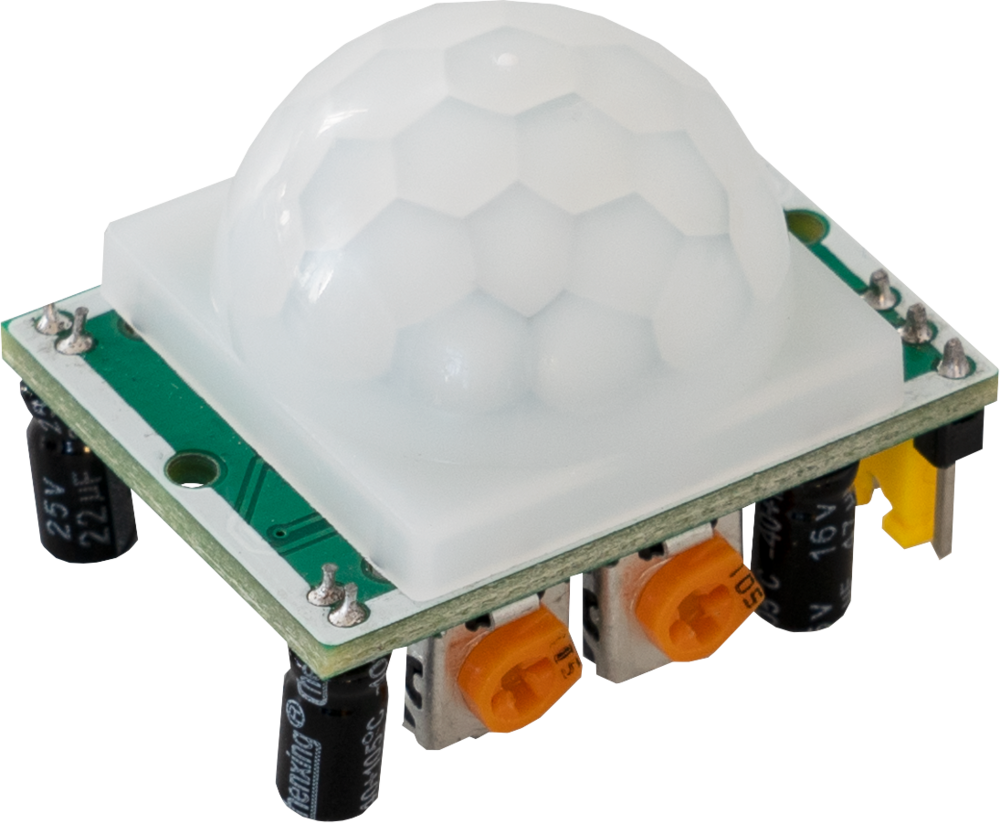

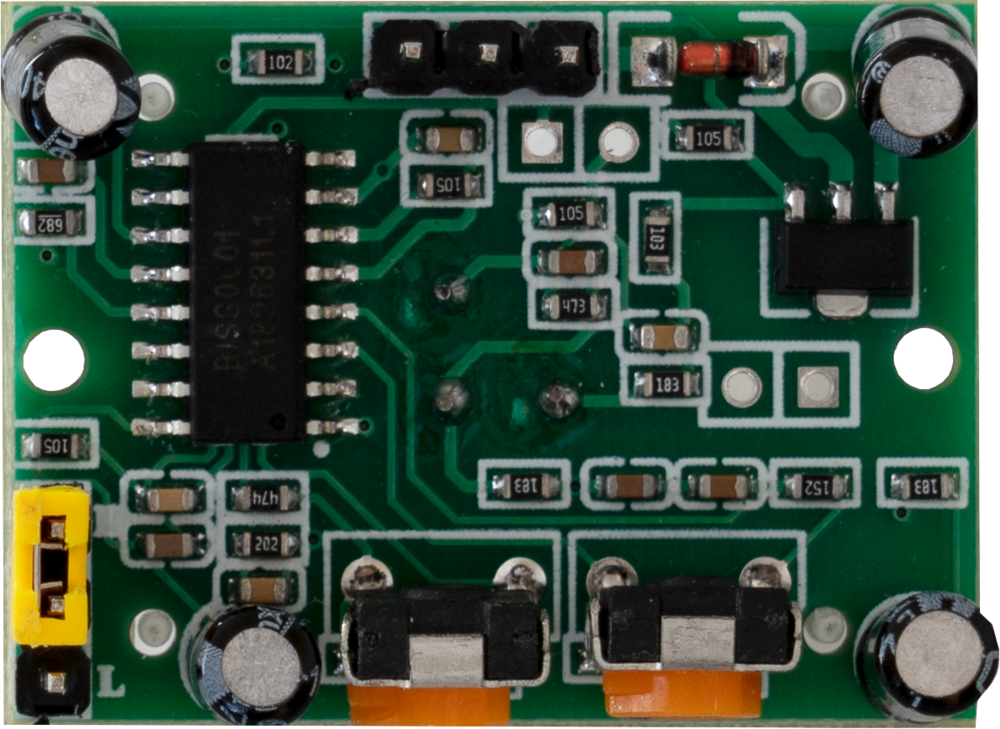

Passive infrared motion sensor

This passive infrared motion sensor is characterized by its adjustable sensitivity, hold time and pulse rate, allowing this sensor to be perfectly adapted to your project. It has a maximum range of 7 m with a viewing angle of up to 120°.

Specifications

Coverage

max. 7 m

Angle of vision

< 120 °

Compatible with

Raspberry Pi, Arduino

Special feature

Adjustable sensitivity, hold time and pulse rate

Supply voltage

5 V DC

Logic level

3 V

Pulse rate

single or multiple (standard)

Dimensions

32 x 24 x 23 mm

Weight

7 g

Items Shipped

SEN-HC-SR501

EAN

4250236820361

Article No.

SEN-HC-SR501

Downloads

• SEN-HC-SR501 Datasheet German - 430,84 KB
• SEN-HC-SR501 Datasheet English - 428,46 KB
• Manual German 2024-04-16 - 833,32 KB
• Manual English 2024-04-16 - 814,9 KB
• Code example Python - 482 B
• SEN-HC-SR501 Code example C++ - 661 B
