Bread Power

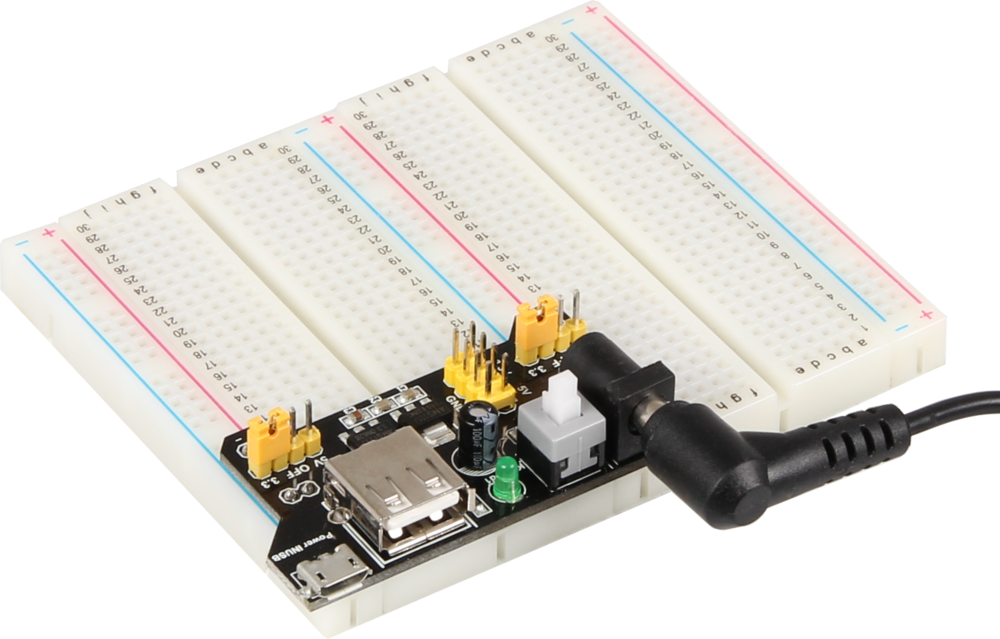

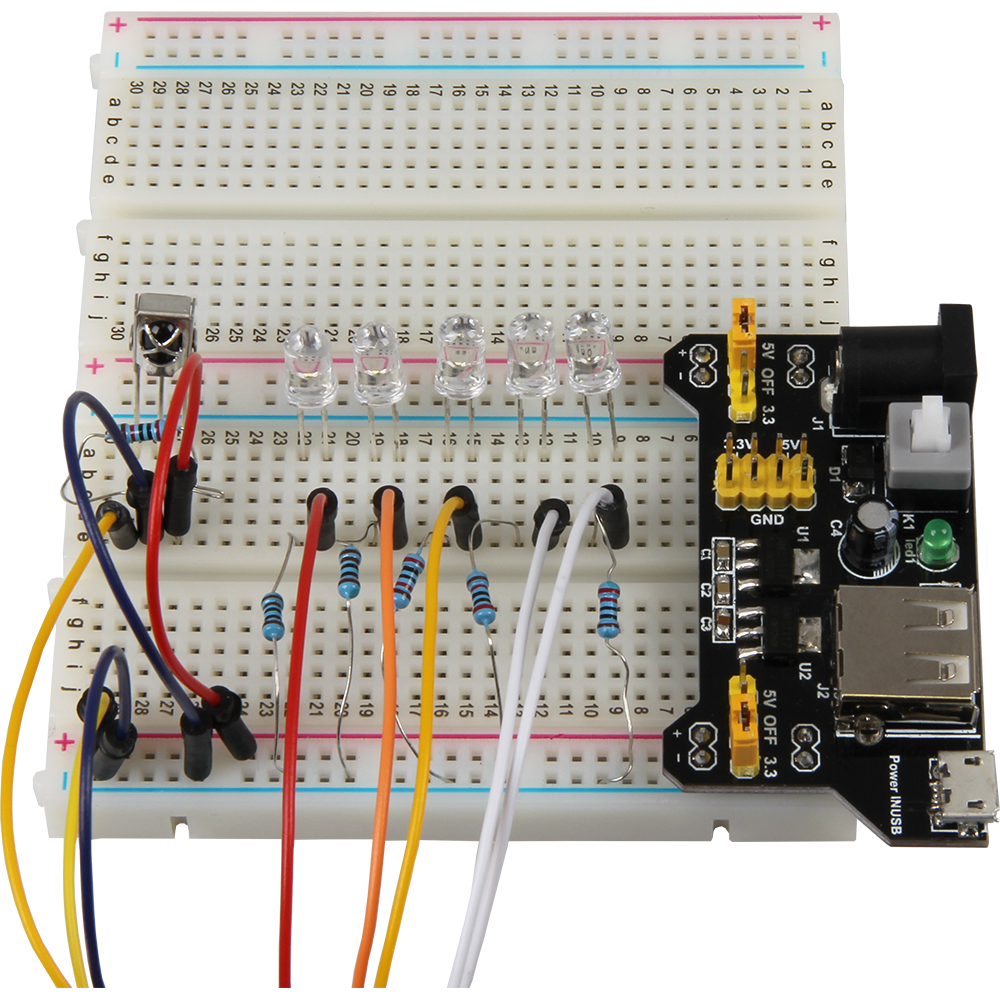

The Bread Power power supply was specially developed for use on breadboards and enables a flexible, reliable power supply for prototypes, experiments and development environments. The compact module is plugged directly onto the breadboard and supplies both voltage strips individually selectable with 3.3 V or 5 V - ideal for parallel operation of different logic levels. In addition, 3.3 V, 5 V and ground are available via dedicated pins for direct pick-up.

For maximum flexibility, the Bread Power supports three input sources: Micro-USB, standard USB and a 5.5 / 2.1 mm DC input (6-12 V). the desired input voltage can be selected via a switch.

When using the DC input, the USB ports are even available for current drain - a real plus for mobile applications or the construction of complete test platforms. With a maximum output current of 700 mA, the module is ideal for a wide range of microcontroller and sensor circuits.

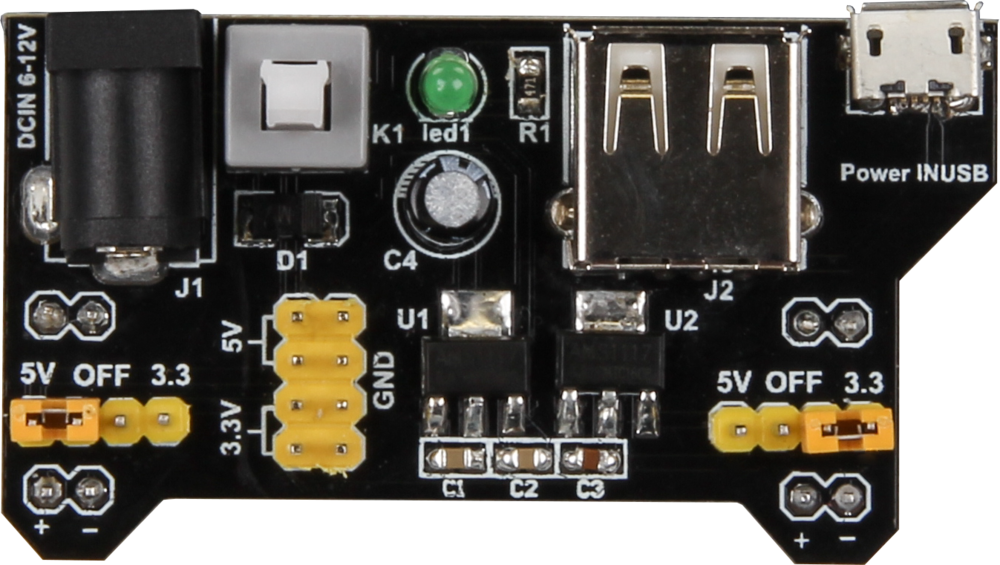

Thanks to its compact design (70 x 15 x 30 mm), the Bread Power can be integrated in a space-saving manner. The delivery includes the assembled circuit board - ready to use for your next assembly.

Specifications

Special features

Simple clip-on solution,
Individually switchable voltages,
Versatile Inputs,
USB outputs for DC operation,
Space-optimized design for a wide range of applications,
3,3 V, 5 V & GND also available separately via pins,
Sufficient power for many common projects

Max. Current

700 mA

Input1

Barrel Connector 5,5 / 2,1mm; DC IN 6 - 12V

Input2

USB 5V

Input3

Micro USB 5V

Output

3,3V, 5V, Ground, USB

Additional information

Dimensions

70 x 15 x 30 mm

Weight

14 g

Items shipped

PCB

EAN

4250236814728

Article No.

SBC-POW-BB
