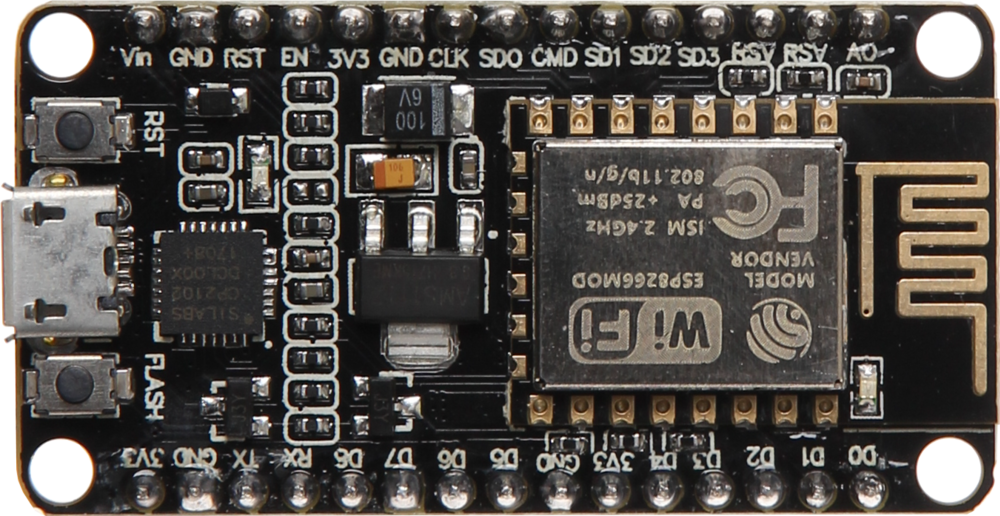

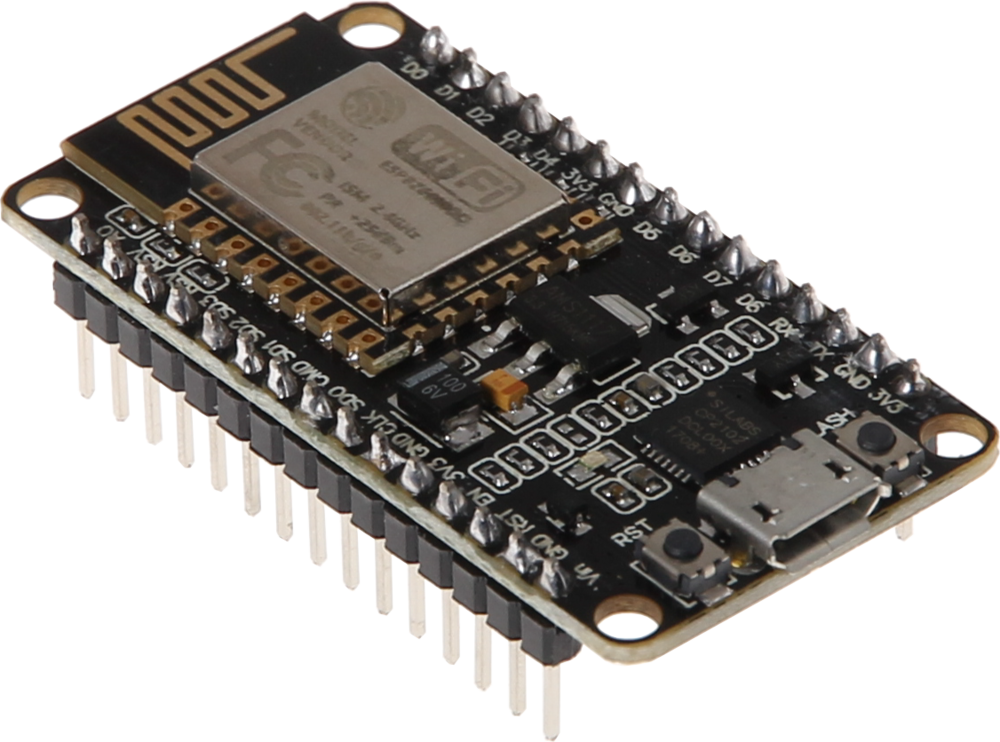

NodeMCU ESP8266

NodeMCU ESP8266

The NodeMCU V2 is a development kit based on the ESP8266 for programming of Wireless LAN controlled projects with open source firmware. With only a few Lua-script lines, it is possible to create your own IoT project with this module you can connect to a SBC for instance.

Specifications

Specifications

Model

NodeMCU ESP8266

Type

ESP8266

Processor

Tensilica LX106

Clock frequency

80 - 160 MHz

RAM

64 kB

Data storage

96 kB

Wireless standard

802.11 b/g/n

Frequency

2,4 GHz

Data interfaces

UART / I2C / PWM / GPIO

Operating voltage

3.0 - 3.6 V (operable via 5V-microUSB)

Operating current

80 mA

Operating temperature

-40°C - 125°C

Dimensions

49 x 26 x 13 mm

Weight

8 g

Items shipped

NodeMCU ESP8266

EAN

4250236815923

Article No.

SBC-NodeMCU

Frequently asked questions

Frequently asked questions

VIN max. ?

If an AMS1117 voltage converter is installed in your NodeMCU, this can regulate a max. voltage from 15V to 3.3V at the VIN. Due to the lack of cooling, we recommend operating it below 7V.
