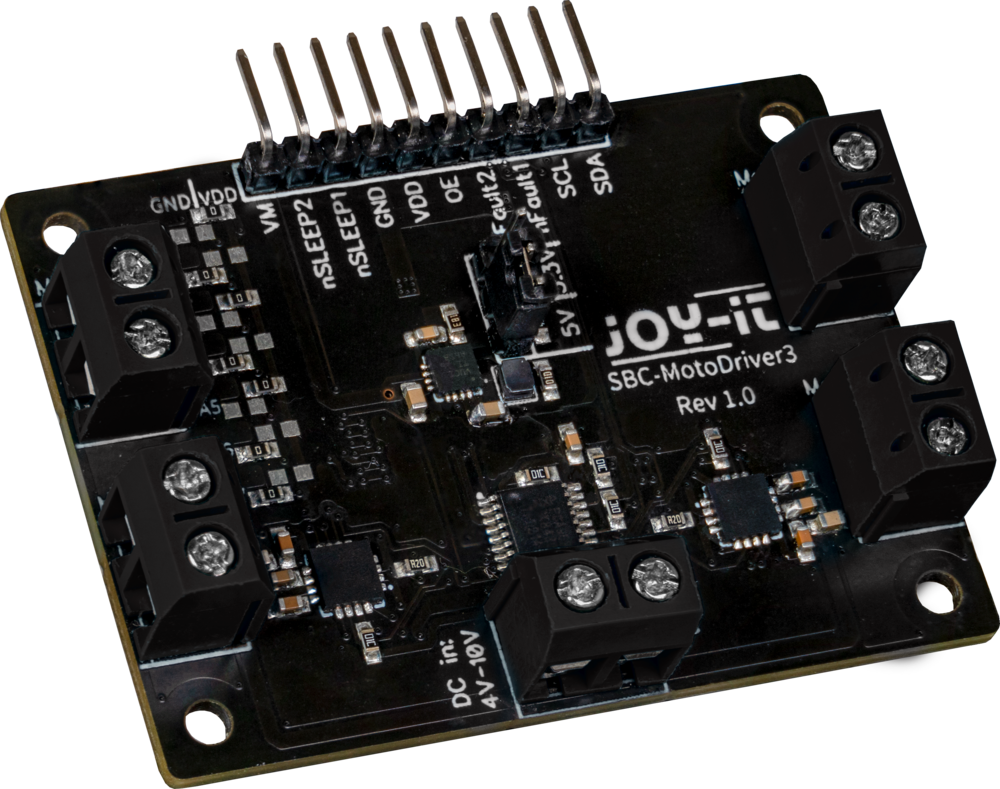

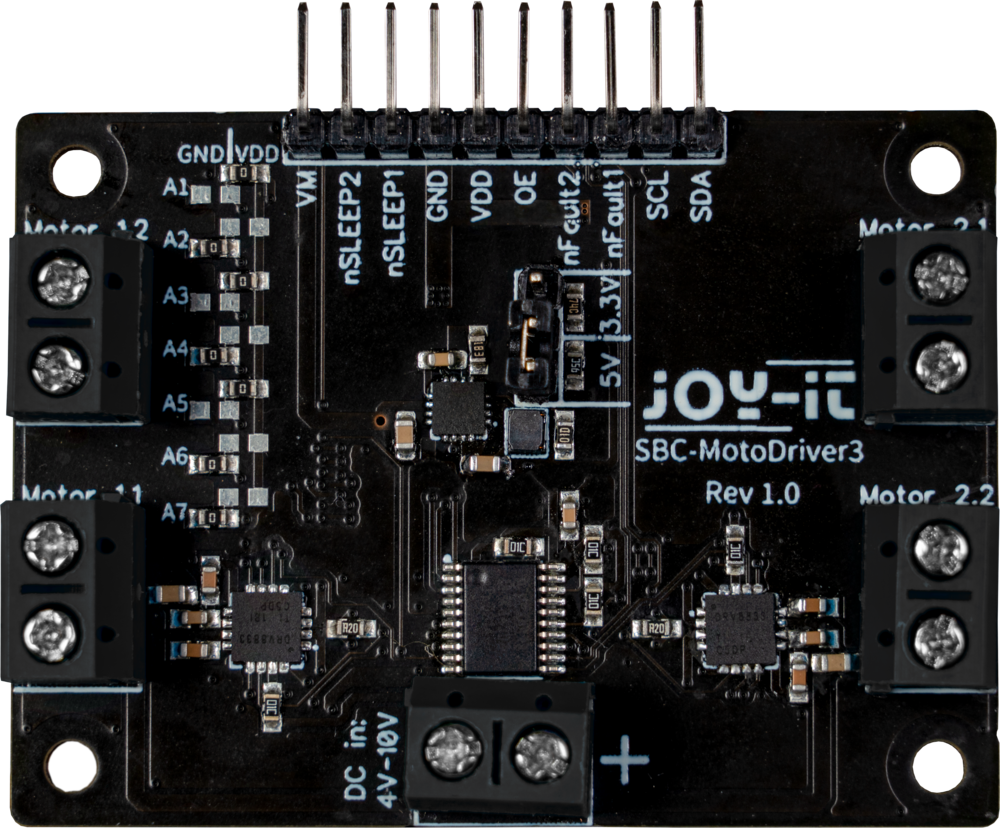

MotoDriver 3

With the MotoDriver3 you have the possibility to control and power up to four DC motors or two stepper motors. The connected motors are controlled via the PCA9634 chip, which provides an I2C interface.

The MotoDriver3 offers an integrated voltage conversion, which allows to provide an adjustable voltage of 3.3V or 5V for microcontrollers and selected single board computers. All that is required is to connect a voltage source to the "DC in" input.

Thanks to the MotoDriver3, there is no need for additional power supplies for the motors or the use of large amounts of cables. The expansion board allows precise control of the motors with a constant voltage in the range of 4V to 10V.

Specifications

Compatible with

Raspberry Pi, Raspberry Pi Pico, Arduino, micro:bit and more

Motor driver IC

DRV8833

Driver IC

PCA9634

Communication interfaces

I2C Default address: 0x15

Special features

On-board voltage conversion from "DC in" to 5 V or 3.3 V, selection of I2C addresses of the driver IC by solder bridges, control of 4 DC motors/2 steppers via I2C possible

Logic level

3.3 V (5 V Tolerant)

Voltage range of VM pin and "DC in" input

4 - 10 V

Voltage range motors (DC & Stepper)

4 - 10 V

Power consumption motors (DC motors)

Max. 1.5 A per motor

Power consumption motors (stepper motors)

Max. 1.5 A per bridge

Operating temperature

-40 - +85 °C

Maximum current output of the integrated voltage con-verter

1 A (maximum value which can be used to supply microcontrollers or single board computers)

Dimensions

57 x 47x 14 mm

Weight

18 g

Items shipped

EAN

4250236826127

Article No.

SBC-MotoDriver3

Downloads

• SBC-MotoDriver3 Datasheet (German) - 2023.06.28 - 264,05 KB
• SBC-MotoDriver3 Datasheet (English) - 2023.06.28 - 262,03 KB
• SBC-MotoDriver3 Datasheet (Spanish) - 2023.10.19 - 311,07 KB
• SBC-MotoDriver3 Datasheet (French) - 2023.10.19 - 312,24 KB
• SBC-MotoDriver3 Datasheet (Italienisch) - 2023.10.19 - 311 KB
• SBC-MotoDriver3 Datasheet (Portuguese) - 2023.10.19 - 312,97 KB
• SBC-MotoDriver3 Manual (German) - 2023.11.03 - 3,33 MB
• SBC-MotoDriver3 Manual (English) - 2023.11.03 - 3,28 MB
• SBC-MotoDriver3 Manual (Spanish) - 2023.11.03 - 3,21 MB
• SBC-MotoDriver3 Manual (French) - 2023.11.03 - 3,24 MB
• SBC-MotoDriver3 Manual (Italian) - 2023.11.03 - 3,3 MB
• SBC-MotoDriver3 Manual (Portuguese) - 2023.11.03 - 3,27 MB
