Moto1 Stepper motor controller

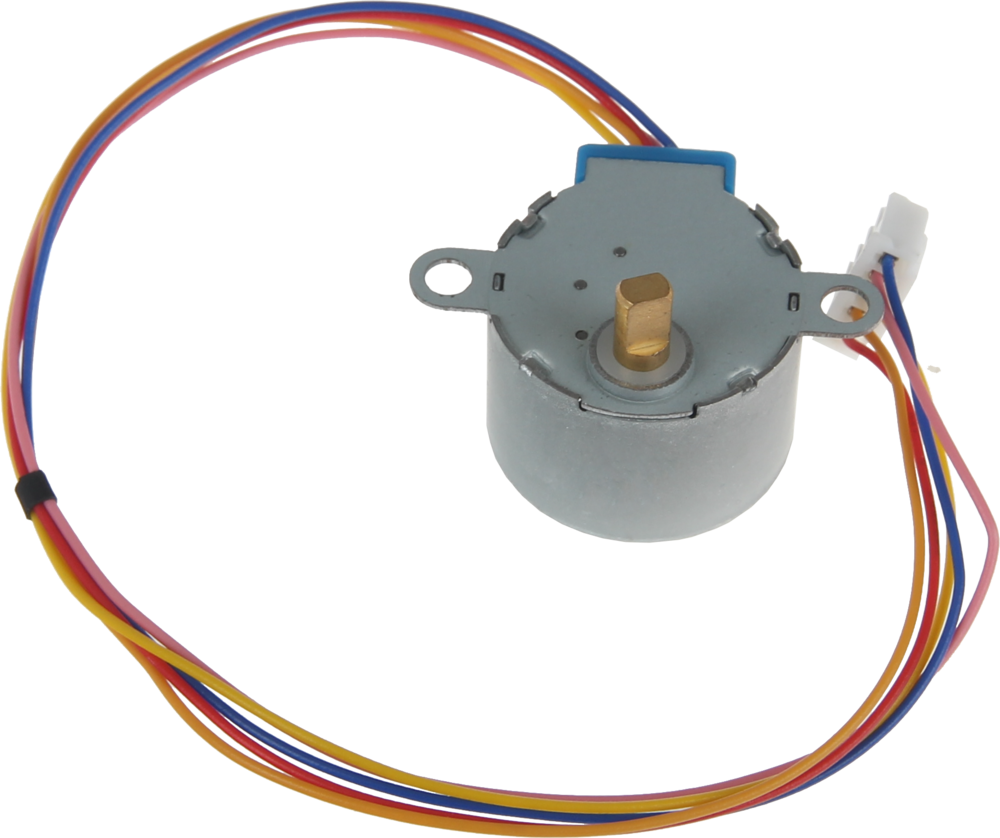

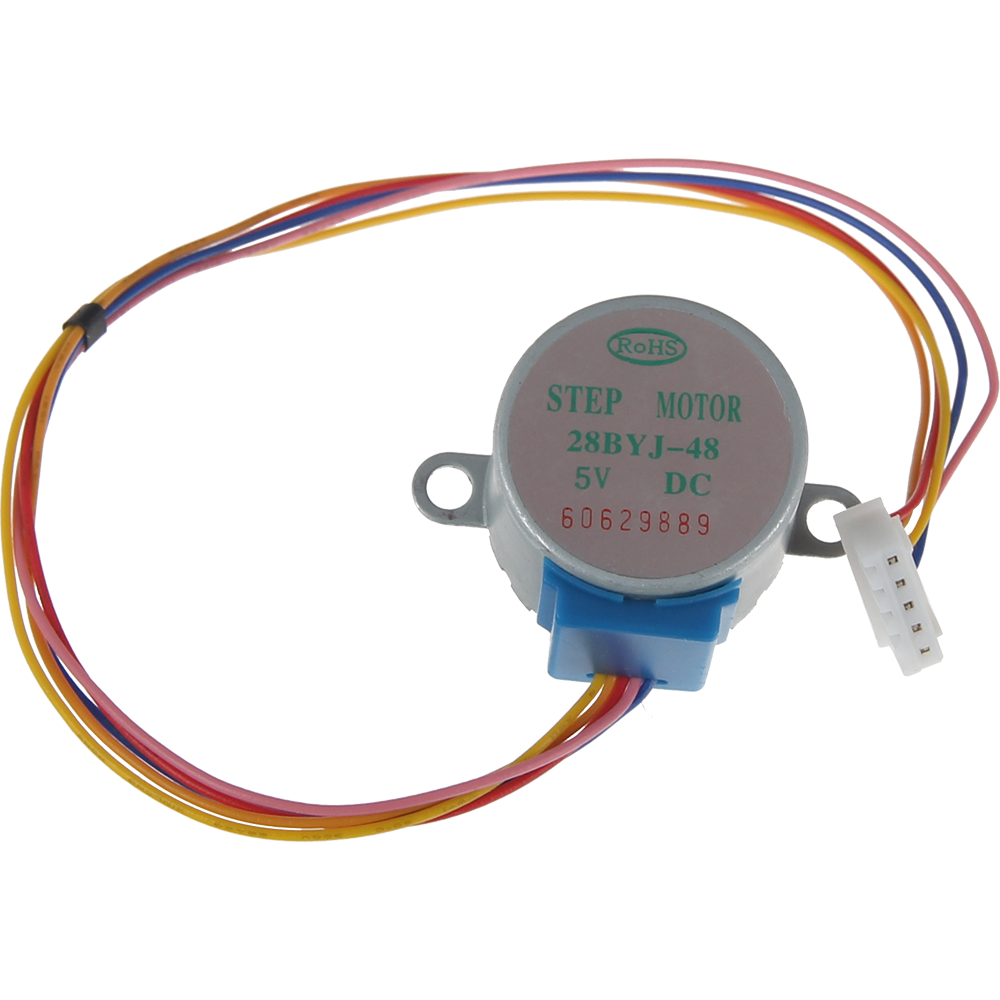

The Moto1 motor control module is a compact plugandplay solution for controlling 5 V stepper motors and is supplied as a set including the tried-andtested 28BYJ-48 stepper motor. It is ideal for projects in the fields of automation, model making, robotics, education or test environments where simple and reliable motion control is required.

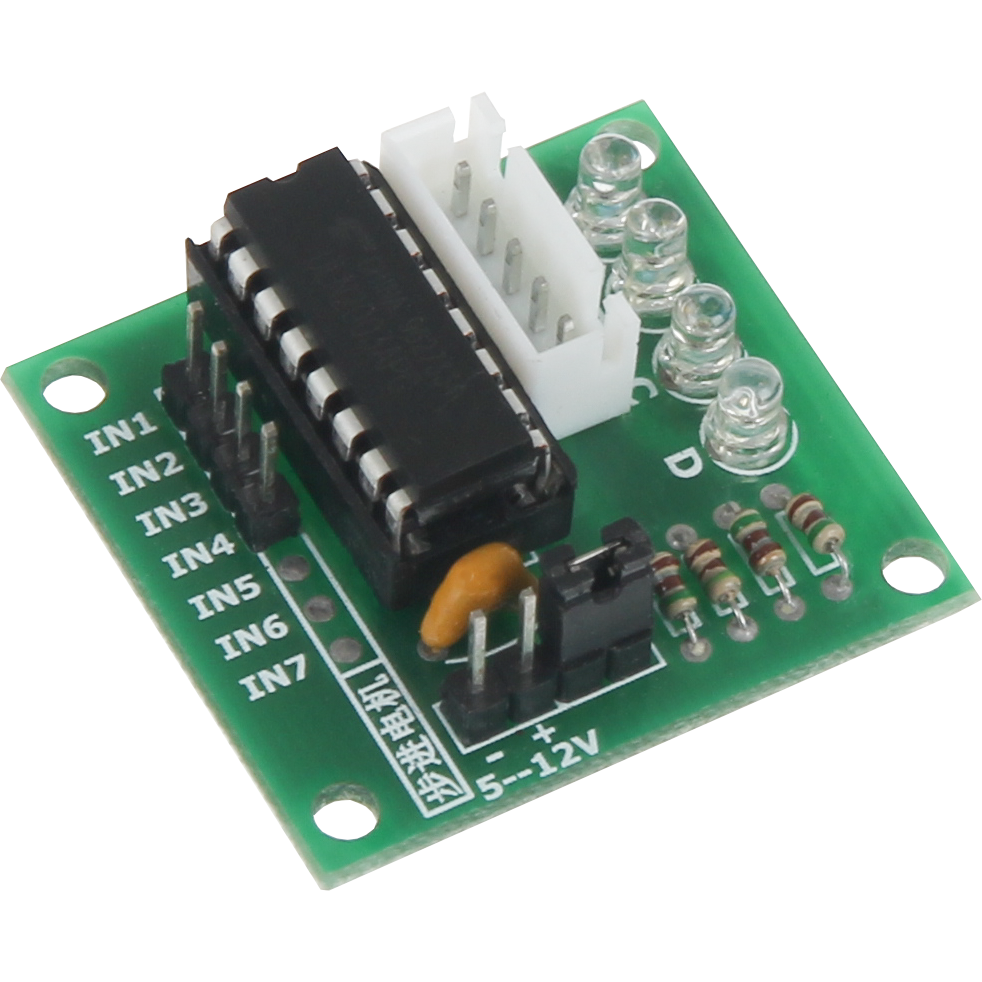

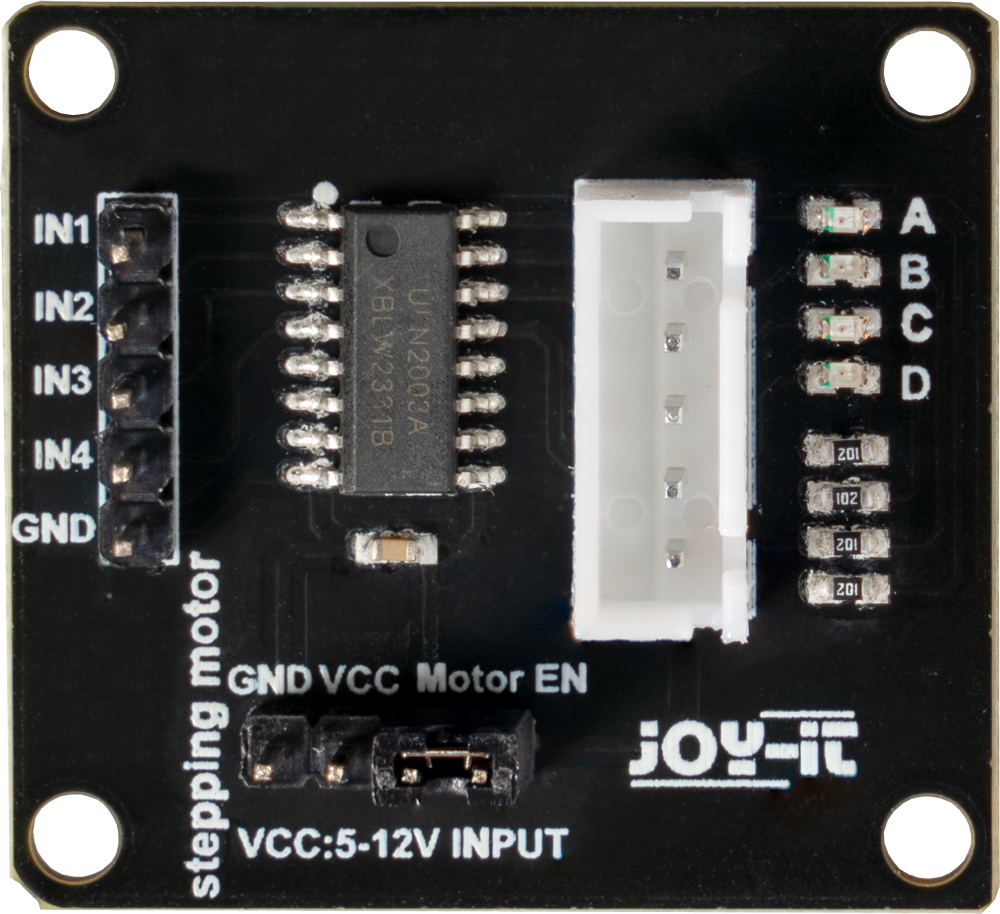

At the heart of the module is the integrated ULN2003 driver, which ensures precise and reliable control of the supplied motor. The operating voltage of 5-12 V enables flexible use in different supply environments and voltage ranges.

Four integrated status LEDs indicate the active output channel and thus support quick visual feedback during operation, tests or error analysis. Thanks to the compact design of 32 × 32 × 12 mm, the module can be easily integrated even in very confined installation situations.

The set is supplied fully assembled and ready for connection - an ideal solution for a quick introduction to stepper motor control, for training projects or as a module in modular development systems.

Specifications

Special features

Complete set with control board & stepper motor,
Flexible use with operating voltages from 5 - 12 V,
4 status LEDs to indicate the active outputs,
Ideal for learning projects, prototyping & automation,
Compact design: only 32 x 32 x 12 mm,
Simple control via digital I/O signals

Driver

ULN2003

Input Voltage

5 - 12V

Steppermotor

4 Phases, 5V

Other Features

4 LEDs displaying the current output channel

Additional information

Dimensions

32 x 12 x 32 mm

Weight

42 g

Items shipped

Moto1, 28BYJ-48 stepper-motor

EAN

4250236813103

Article No.

SBC-Moto1
