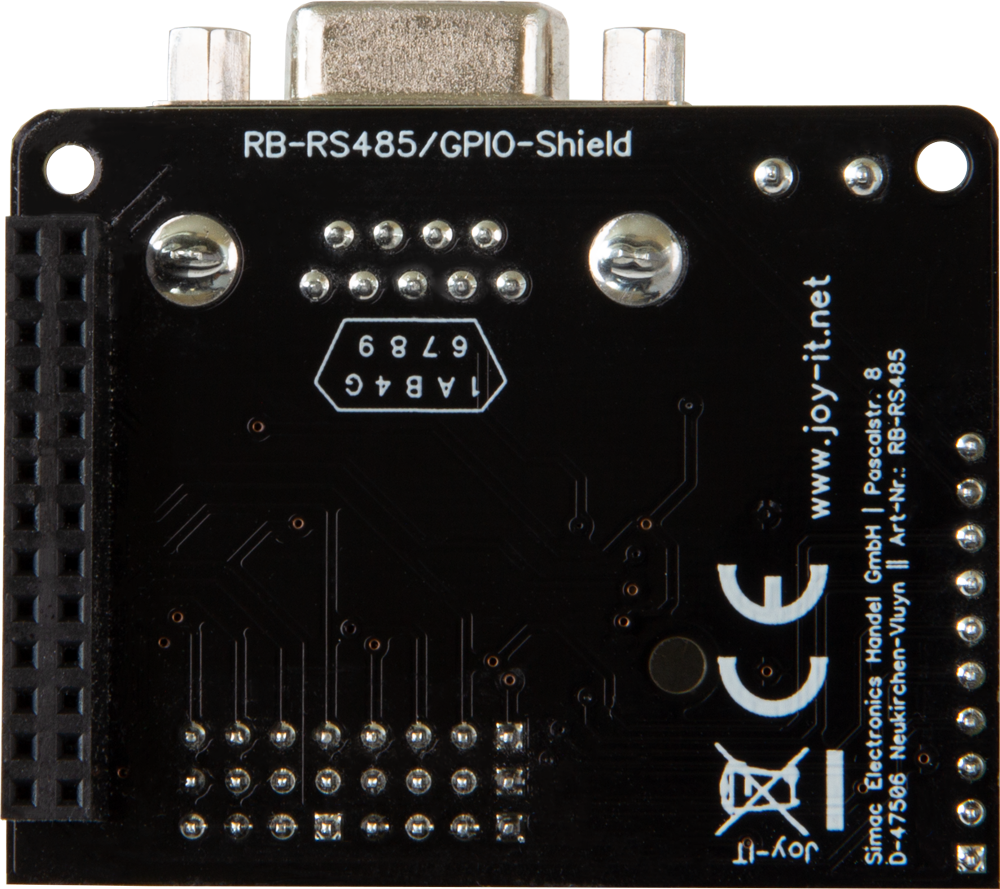

RS485 Breakout Kit

RS485 Breakout Kit

RS485 Breakout Kit

With this break out board, you can expand your Raspberry (3) A/B/ B+/ 4B with a serial RS485 interface.

Specifications

Specifications

Model

RS485 Breakout Kit

Used Controller

Maxim MAX481 DS

Function

Translates the UART signals from GPIO14(TXD) and GPIO15 (RXD) to RS485 level and outputs them to the DB9 connector on pin 2 (A) and pin 3 (B)

Pin-Assignment

On the additional pin headers, it is also possible to access the GPIO signals directly. The assignment of the additional header is indicated directly on the expansion board.

Pin-Assignment P0

GPIO17

Pin-Assignment P1

GPIO18

Pin-Assignment P2

GPIO27

Pin-Assignment P3

GPIO22

Pin-Assignment P4

GPIO23

Pin-Assignment P5

GPIO24

Pin-Assignment P6

GPIO25

Pin-Assignment P7

GPIO4

Compatible to

Raspberry Pi A, A+, B, B+, 2B, 3B, 3B+, 4B, Banana Pi, Orange Pi

Dimensions

49 x 56 x 23 mm

Weight

26 g

Items Shipped

RS485 Breakout Kit

EAN

4250236809427

Article No.

RB-RS485
