RS232 Breakout Kit

RS232 Breakout Kit

RS232 Breakout Kit

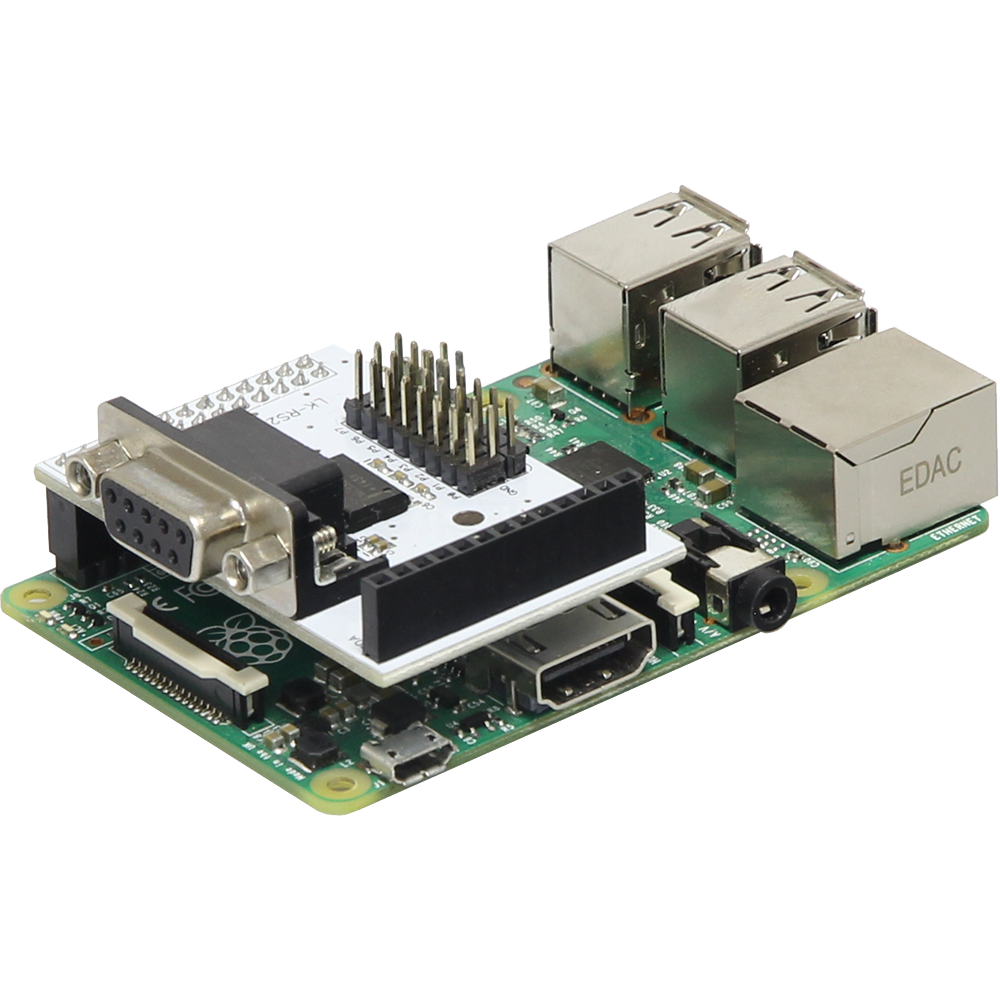

Expand your Raspberry / Raspberry PLUS easily with a serial RS232 interface.

Specifications

Specifications

Model

RS232 Breakout Kit

Used Controller

Maxim MAX3232CWE

Function

Translates the UART signals from GPIO14(TXD) and GPIO15 (RXD) to RS232 level and outputs them to the DB9 connector on pin 2 (TXD) and pin 3 (RXD)

Pin-Assignment P0

GPIO17

Pin-Assignment P1

GPIO18

Pin-Assignment P2

GPIO27

Pin-Assignment P3

GPIO22

Pin-Assignment P4

GPIO23

Pin-Assignment P5

GPIO24

Pin-Assignment P6

GPIO25

Pin-Assignment P7

GPIO4

Compatible to

Raspberry Pi A, A+, B, B+, 2B, 3B, 3B+, Banana Pi, Orange Pi

Dimensions

35 x 55 x 25 mm

Weight

24 g

Items Shipped

RS232 Breakout Kit

EAN

4250236809410

Article No.

RB-RS232
