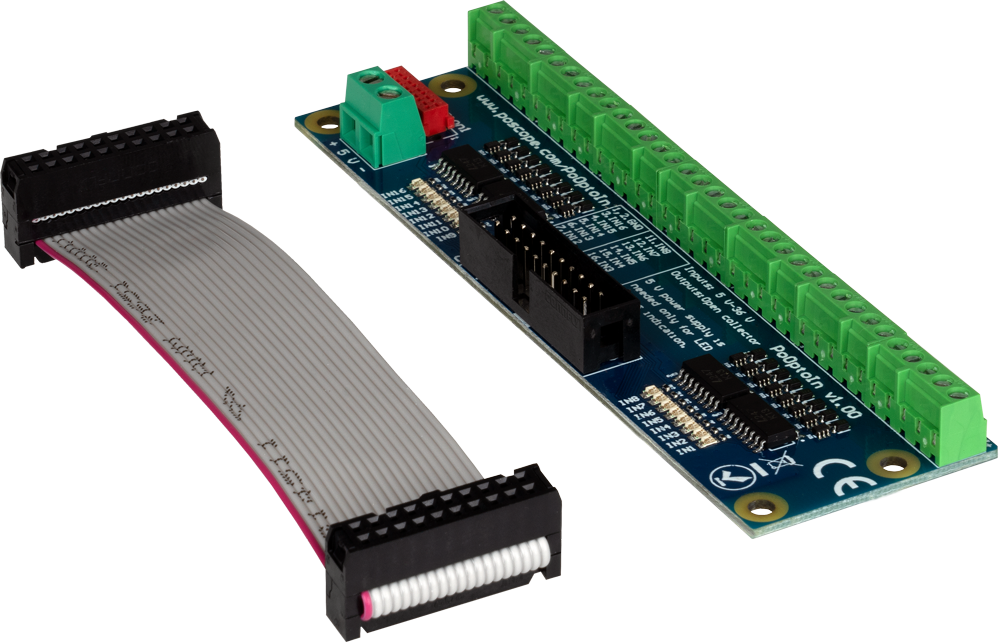

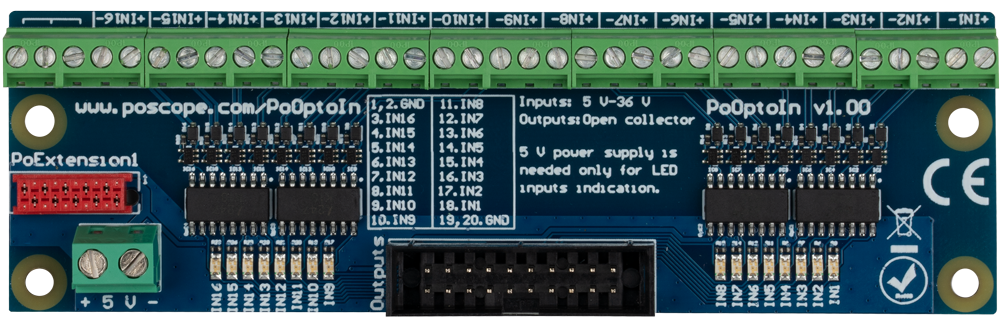

16 Channel Optocoupler

PoOptoIn is a 16-channels industrial digital optical isolator. Thanks to the constant current LED driver circuit on input, the isolator accepts input voltages from 5 to 24 volts.

Digital outputs are open-collector type. Each digital input logic level is signalized with a status LED if exter-nal 5V is applied to power connector. External 5V voltage is not a condition for PoOptoIn operation! The 20-pin IDC output connector is suitable for use with PoKeys57CNC board or any other microcontroller board.

Specifications

Supply voltage

5 - 24 V

Isolation voltage

3000 VRMS

Open Collector ICMax.

30 mA

max. switchting frequency

100 kHz

Additional information

Dimensions

123 x 38 mm

Weight

40 g

EAN

4250236822228

Article No.

PoKeys57CNC-Opto
