PoKeys 57CNC Cable set

The PoKeys 57CNC cable set is the ideal addition for quick and clean cabling of PoKeys 57CNC control systems. It contains a coordinated selection of ribbon cables and IDC connections that have been specially developed for the common interfaces and expansion modules of the PoKeys 57CNC.

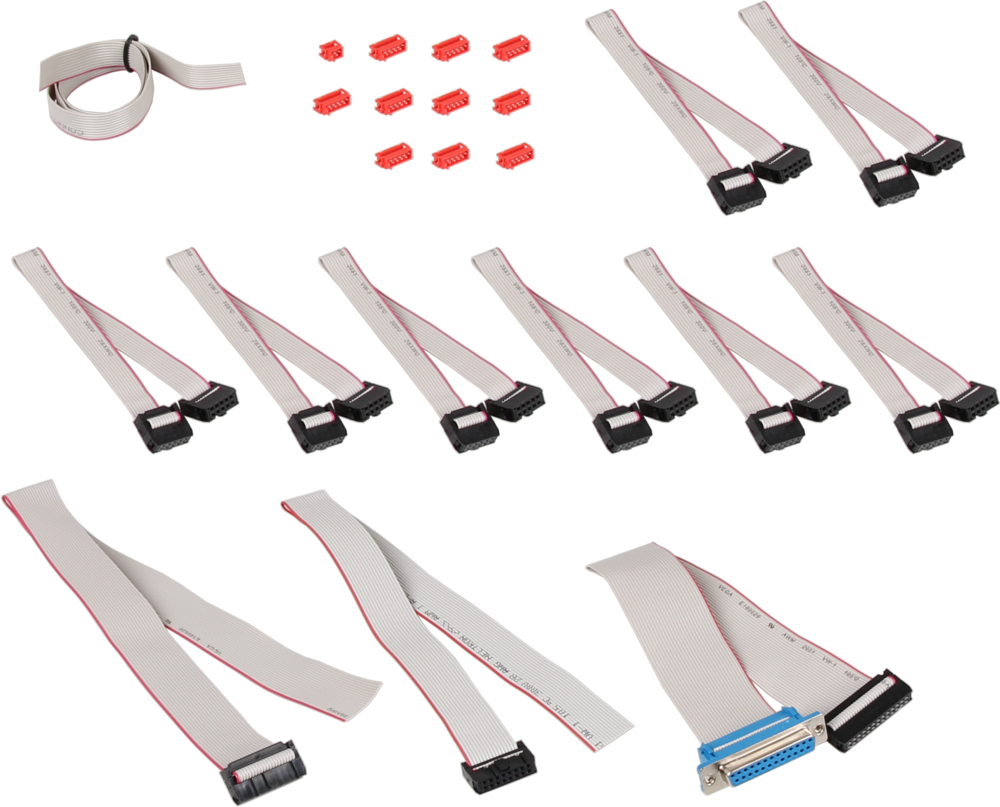

The set contains a total of four ribbon cables of different lengths and pin assignments, including a 2 m long 10-pin cable for more remote components and shorter 16-, 20- and 26-pin cables for compact internal wiring. The IDC connectors included in the scope of delivery (including 16× 10-pin, 1× 16-pin, 1× 26-pin and a SubD25 connector for ribbon connections) enable simple, pluggable connection without soldering.

In addition, 10 poExtension connections and an eStop connection are included - ideal for integrating extensions and safety devices. The cable set is perfectly matched to the geometry and signal routing of the PoKeys 57CNC and saves valuable time during commissioning and when setting up complex control systems.

Whether for prototypes, test benches or series integration - with the PoKeys 57CNC cable set, all the necessary connections can be made quickly and reliably.

Specifications

Special features

Pre-assembled to fit PoKeys57CNC controller,
Four ribbon cables in different lengths & pin assignments,
16x 10-pin IDC connectors for versatile connections,
Including eStop & SubD25 connection for safety & interface integration,
Fast, solder-free connection thanks to IDC technology,
Ideal for extensions such as PoExtension and additional modules,
Time savings during installation, testing & commissioning

Included cables

1x Flat cable 10-Pin (Length: 2 m),
1x Flat cable 20-Pin (Length: 40 cm),
1x Flat cable 16-Pin (Length: 40 cm),
1x Flat cable 26-Pin (Length: 30 cm)

Included connectors

1x 26-Pin IDC (female),
1x 16-Pin IDC (female),
16x 10-Pin IDC (female),
10x poExtension,
1x eStop,
1x SubD25 (female) for flat cables

Additional information

Weight

18 g

Items shipped

PoKeys57CNC-Cable

EAN

4250236815435

Article No.

PoKeys57CNC-Cable
