PoKeys 57CNC

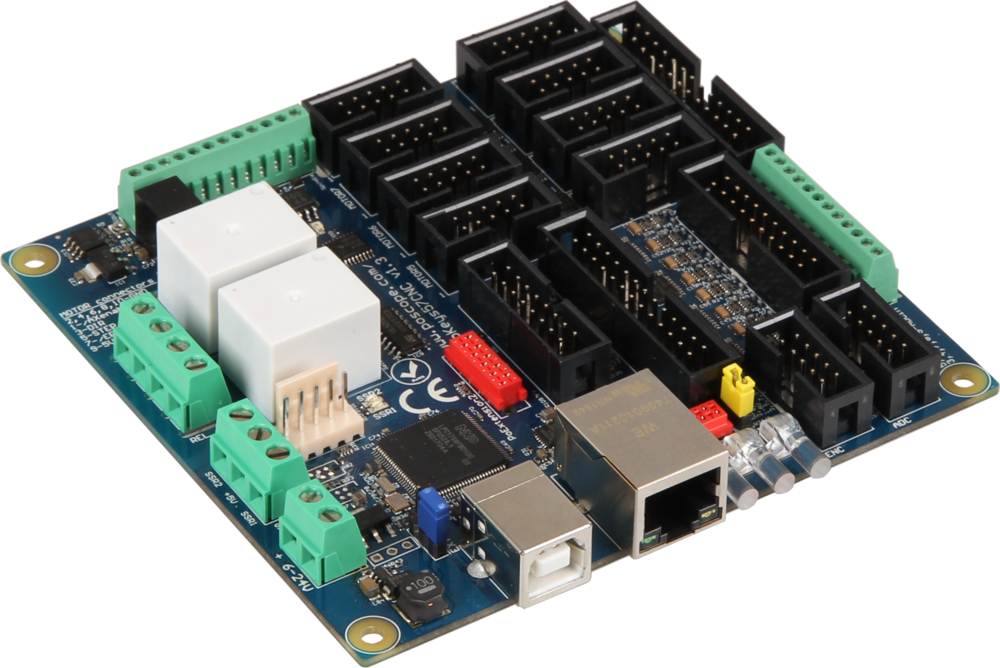

The PoKeys 57CNC is a powerful CNC controller with USB and Ethernet interface for precise control of up to 8 axes. It is ideal for industrial and semi-professional applications in machine control, automation and system integration.

The controller supports Mach3 and Mach4 PoKeys plug-ins as well as Modbus TCP and offers direct network access to configuration and diagnostics via an integrated web interface. Communication with the host system can be carried out flexibly via USB (1.1/2.0 HID-compatible) or Ethernet (10/100 Mbit, DHCP or static). The controller also supports the simulation of a USB keyboard and a USB joystick with 6 axes and 32 buttons. These functions enable versatile adaptation to different control scenarios. The combination of network capability, USB functionality and software compatibility makes the PoKeys 57CNC a central interface for complex control systems.

The extensive I/O equipment includes 28 digital inputs and outputs, 5 PWM outputs (up to 25 MHz, two of which are open collector) and 5 analog inputs with low-pass filtering. The system is supplemented by several encoder inputs and a 125 kHz pulse control for up to eight axes.

An isolated 0-10 V output for spindle control protects against interference. Extensions such as relay cards, keyboard modules, HD44780 displays or up to 100 I2C sensors can be connected via the PoExtBus/PoNET interfaces. The controller is supplied with 6-26 V DC and works reliably at temperatures of 0-60 °C. With compact dimensions of 110 × 105 mm, the device can be easily integrated into existing systems.

Specifications

Special features

Supports Mach4 and Mach3 PoKeys plugins,
Modbus TCP support,
Web interface,
Isolated 0 - 10 V output for spindle control (noise isolated from controller),
Additional connector for HD44780 LCD devices (up to 4x20 characters),
PoExtBus/PoNET support for adding PoNetKBD48CNC, PoPendant1C, PoRelay8, PoExtBusOC16 and up to 100 I2C sensors

USB support

Compatible with USB 1.1/2.0 HID standards,
English USB keyboard simulation,
USB joystick simulation (6 axes, 32 keys)

Ethernet

Ethernet 10/100 with DHCP and fixed IP support

Digital I/O

28 digital I/Os with Pull-Up resistors

PWM Outputs

4 independent configurable, high speed PWM outputs (25 MHz PWM timer) (two with open collector transistor outputs)

Analog inputs

5 analog inputs (12 bit) with digital low-pass filtering (4 analog inputs addiitonally support analog log-pass filtering with 1.9 kHz crossover frequency)

Encoder

Multiple encoder pair inputs with three addiitonal dedicated high-speed encoders and one ultra-high-speed encoder input

Puls-Engine

High-performance 8-axis 125 kHz pulse drive with additional motor connections

Button-Matrix-Support

Supports a up to 16x8 button matrix

Connection

Ethernet or USB connection to host device

Power Supply

6 - 26 V DC with minimum 2.5 W

Operating temperature

0 - 60 °C

Storage temperature

-40 °C - 85 °C

Additional information

Dimensions

110 x 105 mm

Weight

120

Items shipped

PoKeys57CNC

EAN

4250236815428

Article No.

PoKeys57CNC
