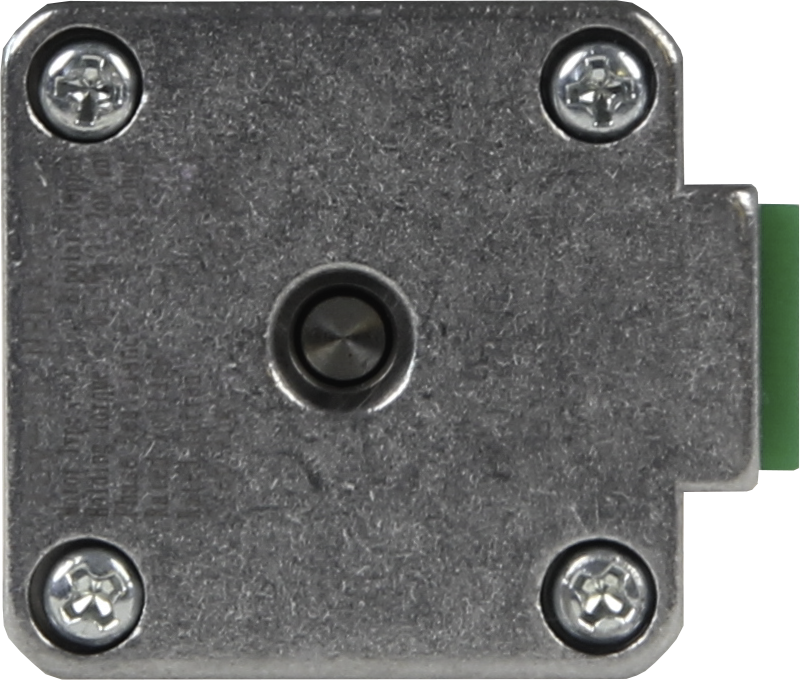

NEMA14-02
The NEMA14-02 is a compact bipolar stepper motor designed for precise positioning and motion control tasks. Thanks to its balanced combination of compact design and high holding torque, it is particularly well-suited for applications in automation, CNC, 3D printing, and robotics.
With 200 steps per revolution and a step angle of 1.8°, the motor enables finely graded and controlled movement. This allows even the most demanding positioning tasks to be carried out reliably and reproducibly.
The NEMA14-02 offers a holding torque of 0.15 Nm, providing a solid performance reserve while maintaining compact dimensions of just 35 × 35 × 35 mm. This makes it particularly attractive for designs where performance and a small footprint are equally important.
The JST-compatible connector allows the motor to be integrated into existing systems cleanly and easily. This makes the NEMA14-02 a versatile solution for developers, makers, and designers who need a compact, precisely controllable stepper motor with higher holding torque.
Specifications
Shaft diameter
Ø 5 x 16 mm (single shaft)
Specification
35SHD0102-20B
Connection
6 pole socket S6B-PH-K (JST compatible), 4 Pins used
Steps per revolution
200
Holding torque
0.15 Nm
Step angle
1.8 °
Rated voltage
4.35 V
Rated current
0.75 A
Amount of phases
2
Phase resistance
5.8 Ω
Phase inductivity
9.5 mH
Phase resistance
min. 100 MΩ at 500 V
Isolation class
B (130°)
Rotational interia
14 g·cm²
Detent torque
0.012 Nm
permitted Operating temperature
-10 - 50 °C
Additional information
Dimensions
35 x 35 x 35 mm
Weight
180 g
Items shipped
NEMA14-02 stepper motor
EAN
4250236818757
Article No.
NEMA14-02
