NEMA 8 hollow shaft stepper motor

NEMA 8 hollow shaft stepper motor

NEMA 8 hollow shaft stepper motor

Our NEMA 8 series are very small high torque stepper motors that can reach speeds of up to 3000 rpm.
These motors are often used in the model making and maker scene as well as in the industrial enviroment (Positioning of optics, dosing pumps, interlocks, etc.).

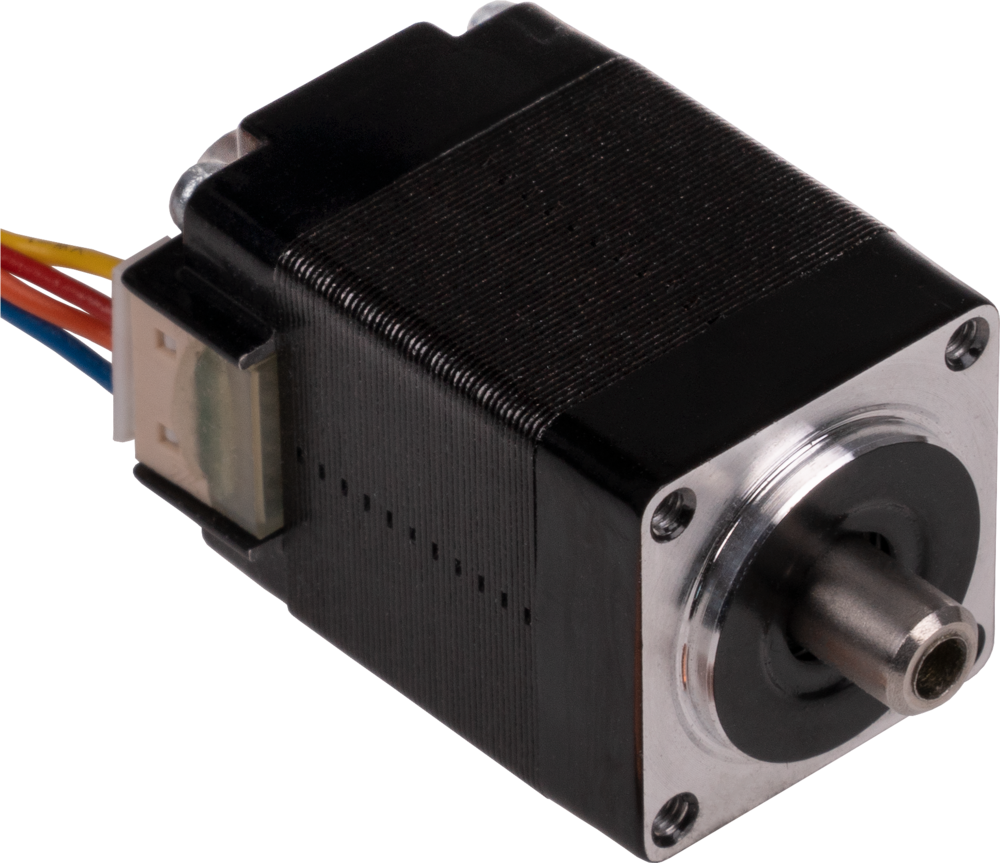

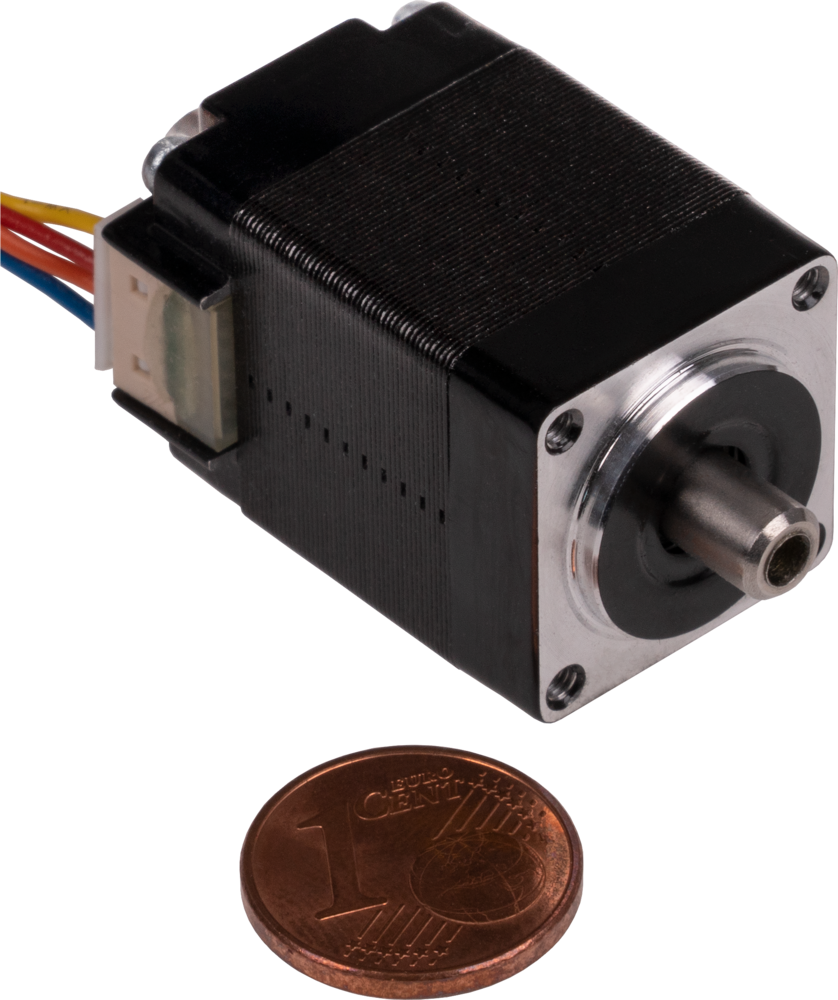

The special feature of this motor is the hollow shaft, which makes it possible to transport e.g. a compressed air or liquid line, power supply or even light through the shaft.

Specifications

Specifications

Double shaft dimensions

Ø 5 x 5,5 mm, Ø 5 x 7 mm

Connection

6 pin JST socket

Cable Length

400 mm

Holding torque

16 mNm

Rated voltage

3.9 V

Rated current

0.6 A

Step angle

1.8 ° ±5 %

Number of Phases

2

Phase resistance

6.5 Ω

Phase inductivity

1.7 mH

Isolation resistance

100 MΩ min. @500V DC

Isolation class

B (130°C)

Rotational inertia

2 g·cm²

Detent torque

2 mNm

permitted operating temperature

-10 to 50 °C

Dimensions

20 x 22 x 30 mm

Weight

60 g

Items Shipped

NEMA 8 hollow shaft stepper motor, connection cable

EAN

4250236821702

Article No.

NEMA08-05HS
