RD6006B DC voltage converter & control element

The JT-RD6006B is a versatile voltage converter module with integrated control element for use in high-performance DC power supplies. It enables precise conversion and control of DC voltages, making it ideal for demanding applications in laboratory environments, industrial plants, or test benches.

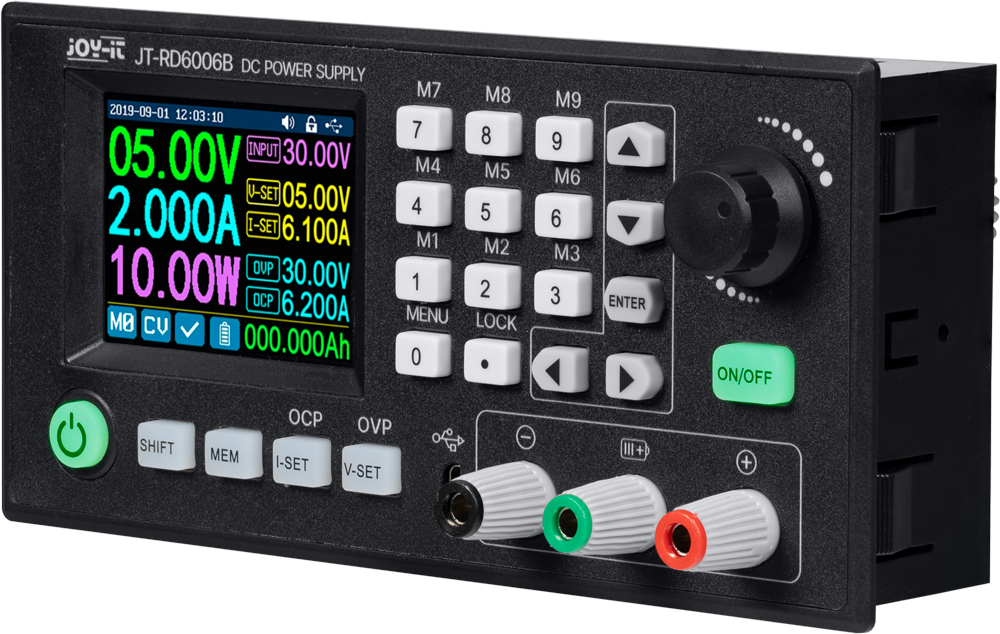

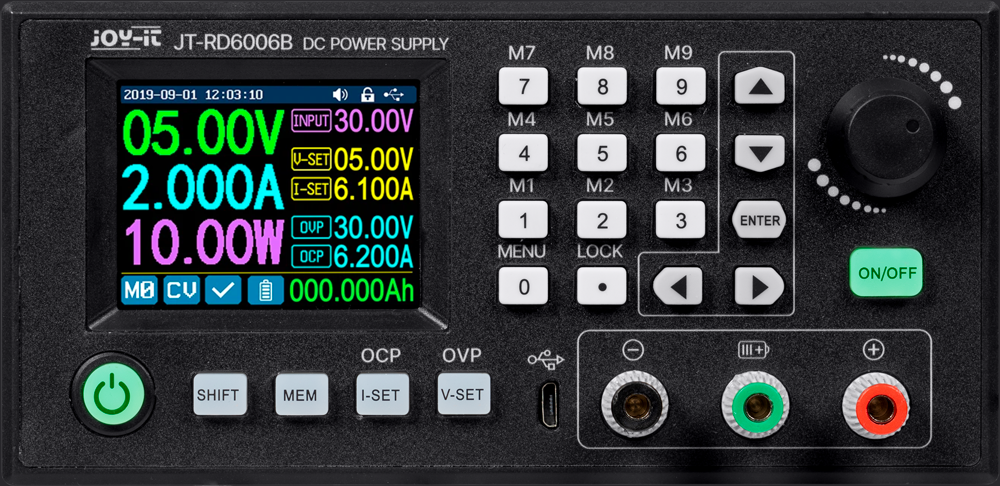

Thanks to the clearly arranged control panel with intuitive button layout, controlling the is particularly convenient. Up to nine memory locations are available, ensuring that frequently used configurations can be accessed quickly and easily. An integrated USB interface also enables convenient remote control via PC software as well as comprehensive monitoring and logging functions. In addition, a special charging function for rechargeable batteries is integrated.

The module offers comprehensive protection and limiting functions to ensure maximum operational safety. These include operation in constant voltage (CV) and constant current (CC) modes, reliable overvoltage and overcurrent protection, and easily accessible, replaceable fuses on the rear of the device.

Optional accessories are available for even greater flexibility. The robust JT-RD6006-Case02B ensures clean integration into professional environments. With the optionally available WiFi module, the system can be conveniently controlled and monitored via a smartphone app.

The JT-RD6006B combines powerful control technology with flexible operation, ensuring maximum control and safety in the power supply.

Specifications

Special features

DC voltage converter with integrated control element,
Values can be conveniently entered via keypad,
Adjustable overcurrent and overvoltage protection,
Integrated RTC (requires CR1220 battery),
NTC temperature sensor,
Battery charging function

Input voltage

6- 70 V

Output voltage

0 - 60 V

Output current

0 - 6 A

Output power

0 - 360 W

Voltage resolution

0,01 V

Current resolution

0,001 A

Battery charge function measuring range

0 - 9999,99 Ah / 0 - 9999,99 Wh

Residual ripple

100 mV(pp) (at maximum resolution)

Display

2,4 inch LCD

Optional accessories

Housing, WiFi adapter

Operating temperature range

-10 - 40 °C

Fuse

SMD fuse, fast-acting, ceramic 20 A

Banana plug diameter

4 mm

RTC battery

CR1220 (not included)

Color

Black

Additional information

Dimensions

167 x 81 x 65 mm

Weight

607 g

Items shipped

JT-RD6006B, NTC temperature sensor, 10 A fuse

EAN

4250236827858

Article No.

JT-RD6006B
