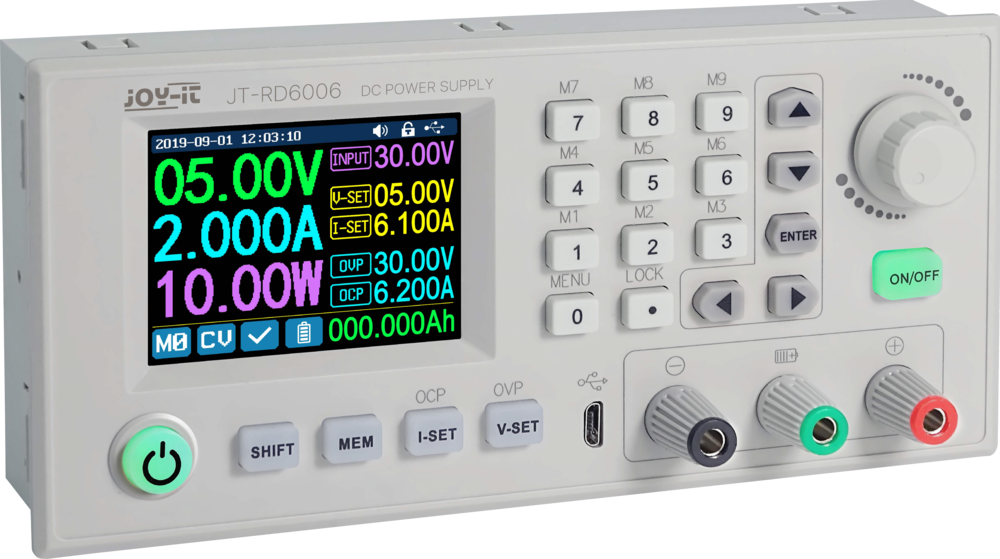

RD6006 DC voltage converter & control element

The JT-RD6006 is a versatile voltage converter module with an integrated control element for use in highperformance DC power supplies. It enables the precise conversion and control of DC voltages and is therefore ideal for demanding applications in laboratory environments, industrial plants or test benches.

Thanks to the clearly designed control panel with intuitive button layout, control is particularly convenient. Up to nine memory locations are available, ensuring that frequently used configurations can be called up quickly and easily. An integrated USB interface also enables convenient remote control via PC software as well as comprehensive monitoring and logging functions. A special charging function for rechargeable batteries is also integrated.

The module offers comprehensive protection and limiting functions to ensure maximum operational safety. These include operation in constant voltage (CV) and constant current (CC) mode, reliable overvoltage and overcurrent protection and easily accessible, replaceable fuses on the rear of the device.

Optional accessories are available for even more flexibility. The robust JT-RD6006-Case01 & JT-RD6006-Case02 ensure clean integration into professional environments. With the optional WiFi module, the system can be conveniently controlled and monitored via smartphone app.

The JT-RD6006 combines powerful control technology with flexible operation and ensures maximum control and safety for the power supply.

Specifications

Characteristics

DC voltage converter with integrated control element,
Convenient value entry via keypad,
Adjustable overcurrent & overvoltage protection,
Integrated RTC (requires CR1220 battery),
NTC temperature sensor,
Battery charging function

Input voltage

6 - 70 V

Output voltage

0 - 60 V

Output current

0 - 6 A

Output power

0 - 360 W

Voltage resolution

0,01 V

Current resolution

0,001 A

Capacity measurement range

0 - 9999.99 Ah

Energy measurement range

0 - 9999.99 Wh

Residual ripple

100 mV(pp) (at maximal capacity)

Display

2.4 Inch LCD

Optional accesories

Cases in two sizes, wireless network module

Working temperature range

- 10 - 40 °C

Additional information

Dimensions

167 x 81 x 65 mm

Weight

607 g

Items shipped

JT-RD6006

EAN

425236820415

Article No.

JT-RD6006

Frequently asked questions

Which battery is needed?

CR1220
