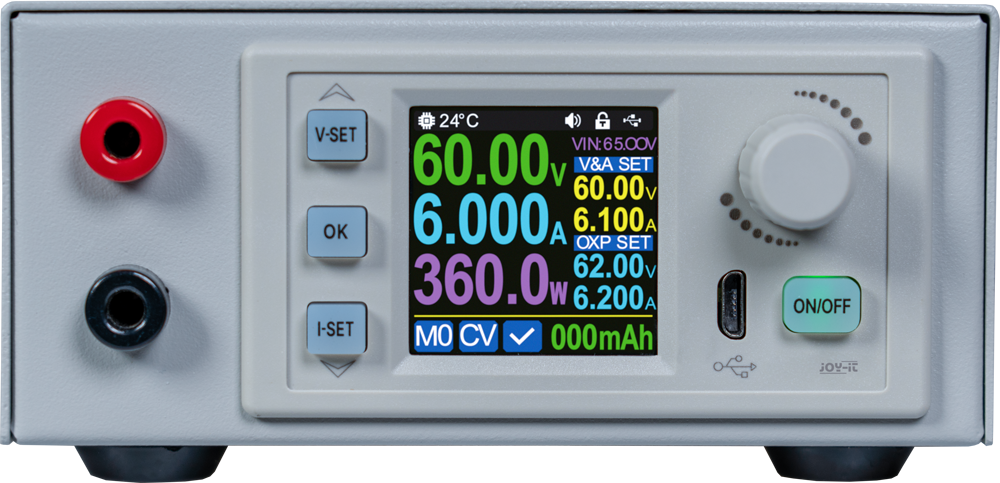

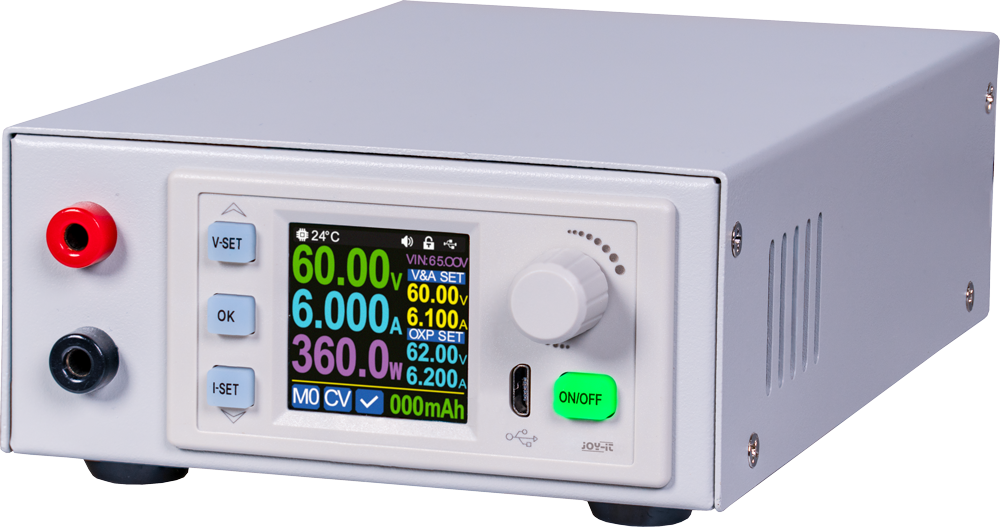

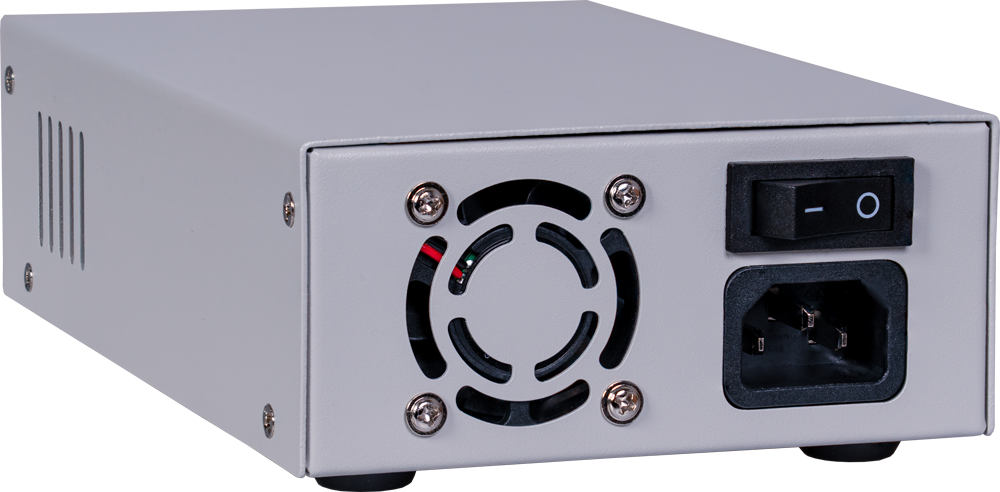

PS360-C compact power supply

The JT-PS360-C is a state-of-the-art laboratory power supply that impresses with its outstanding combination of performance, reliability, and compact design. It has been specifically designed for professional use and offers users in development, production, and training a tool that is versatile, efficient, and future-proof.

With its enormous flexibility, the power supply unit is the perfect solution for a wide range of applications. Whether for precise measurements in the laboratory, the implementation of complex test benches, or daily use in workshops, the JT-PS360-C provides reliable support and ensures that all tasks are carried out smoothly. Its operation is deliberately intuitive, enabling both experienced professionals and beginners to work productively right away without having to familiarize themselves with complicated procedures.

One key advantage is the integrated option for connecting to PC software. This opens up numerous additional possibilities: Control can be conveniently carried out remotely, while at the same time ensuring precise documentation and analysis of the work steps. This allows the device to be seamlessly integrated into existing infrastructures, making it particularly attractive for companies that value efficiency and transparent processes.

Thanks to its successful combination of precision, safety, and practical functions, the JT-PS360-C is much more than just a standard laboratory power supply. It is a reliable partner that makes work noticeably easier, optimizes processes, and ensures sustainable results in any professional environment. Companies benefit not only from its performance, but also from the security of investing in a solution that creates long-term added value.

Specifications

Special features

Ultra compact design,
0 - 60 V / 0 - 6 A / 360 W,
High measurement accuracy & fast response time,
Constant voltage & constant current mode,
Energy & charge measurement,
Protection & PC control functions

Input voltage

200 - 240 V AC / 100 - 120 V AC

Output voltage

0 - 60 V

Output current

0 - 6 A

Output power

0 - 360 W

Voltage resolution

0,01 V

Current resolution

0.001 A

Voltage accuracy

± 0,3% + 3 Digits

Current accuracy

± 0,5% + 5 Digits

Ripple

100 mV VPP

Repsonse time in constant voltage mode

2 ms @ 0.1 A - 5A

Load regulation in constant voltage mode

± 0,1% + 2 Digits

Load regulation in constant current mode

± 0,1% + 3 Digits

Measuring range electric charge

0 - 9999.99 Ah

Measuring range energy

0 - 9999,99 Wh

Display

1.54" (3.91 cm) LCD Display

Protection features

Overtemperature protection: above 90 °C
Overvoltage and Overcurrent protection: adjustable

Additional information

Dimensions

200 x 115 x 57 mm

Weight

1430 g

Items shipped

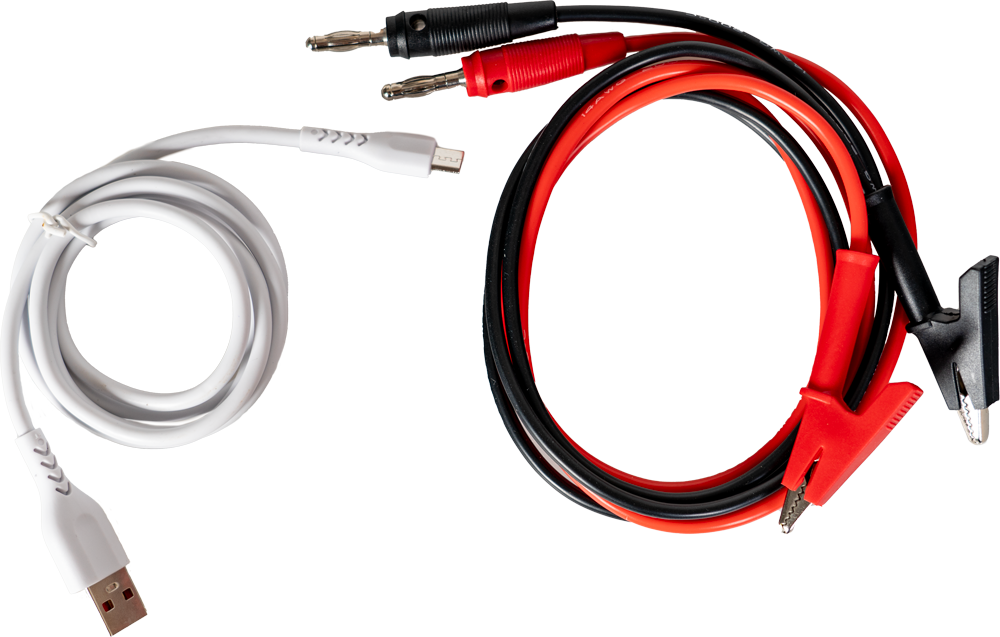

JT-PS360-C, Micro USB Cable, Alligator Clip Cable, Power Cord

EAN

4250236826295

Article No.

JT-PS360-C
