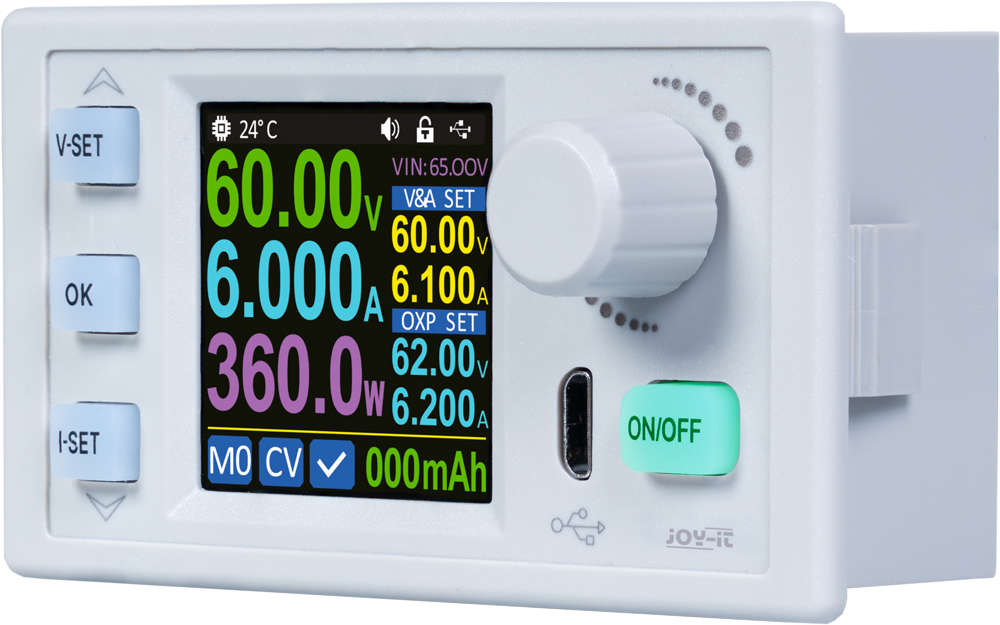

PS360 DC voltage converter & control element

The JT-PS360 combines the functions of a powerful voltage converter and a precise control unit in a single, ultra-compact module. With a wide input voltage range from 12 to 68 volts, it is ideal for a variety of professional applications in industry, laboratories and mobile technology. This all-in-one system enables reliable voltage regulation and at the same time offers full control over all operating parameters - compact, efficient and versatile.

The intelligent combination of converter module and controller significantly reduces cabling and space requirements and facilitates integration into existing systems. Despite its extremely small size, the JT-PS360 delivers impressive performance with high output stability, fast regulation and reliable protection under demanding load conditions.

The JT-PS360 offers particular added value thanks to its versatility in daily use. Whether in mobile measurement technology, test setups in development or in continuous industrial operation - the device impresses with its simple operation, flexible control options and uncompromising reliability, even under demanding conditions.

The JT-PS360 is the perfect solution for anyone who needs maximum performance and functionality in the smallest possible space. It combines conversion and control in one module and thus offers maximum efficiency, maximum flexibility and first-class performance for professional applications.

Specifications

Special functions

DC voltage converter with integrated control element,
Ultra compact converter & control module,
Adjustable overcurrent & overvoltage protection,
Overtemperature protection,
Constant voltage & constant current mode,
Controllable via PC software

Input voltage

12 - 68 V

Output voltage

0 - 60 V

Output current

0 - 6 A

Output power

0 - 360 W

Voltage resolution

0,01 V

Current resolution

0,001 A

Voltage accuracy

± (0,3% + 3 Ziffern)

Current accuracy

± (0,5% + 5 Ziffern)

Ripple

100 mV VPP

Response time in constant voltage mode

2 ms @ 0,1 A - 5 A

Load regulation in constant-voltage mode

± (0,1% + 2 Ziffern)

Load regulation in constant current mode

± (0,1% + 3 Ziffern)

Measuring range electrical charge

0 - 9999,99 Ah

Energy measuring range

0 - 9999,99 Wh

Display

1,54“ (3,91 cm) LCD Display

Overtemperature protection

ab 90 °C

Additional information

Dimensions

134 x 68 x 65 mm

Weight

200 g

Items shipped

JT-PS360, temperature sensor, 10 A fuse

EAN

4250236827872

Article No.

JT-PS360
