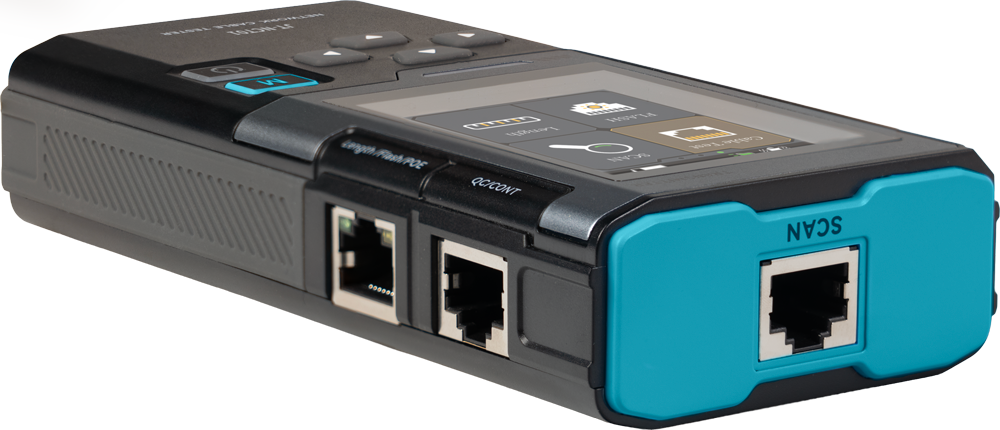

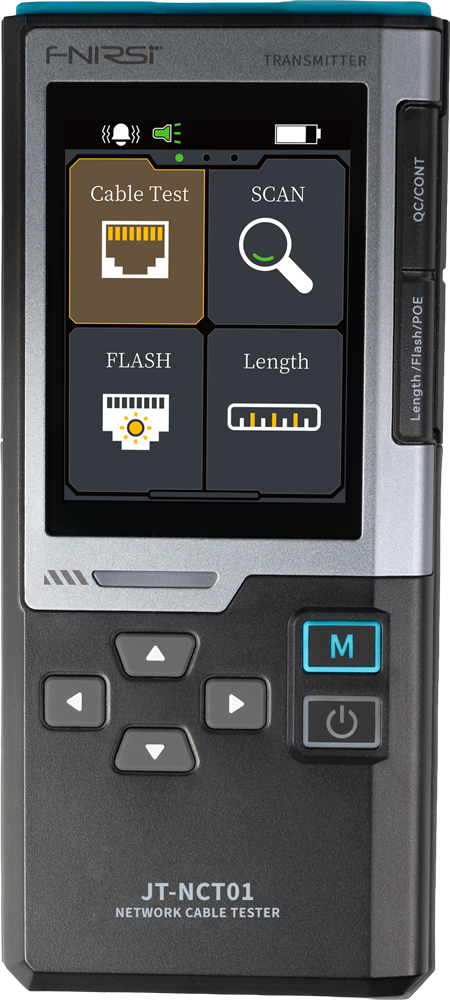

The JT-NCT01 is a smart, multifunctional network tester designed for professional installation, maintenance, and troubleshooting work on network and telephone lines. With its easy-to-read 2.4-inch color display, it clearly shows measurement results and helps technicians quickly test cable connections, accurately identify faults, and efficiently commission network infrastructures.

For cable testing, the JT-NCT01 offers a wide range of functions, including continuity testing, pair testing, wire sequence and fault testing, as well as RJ45 crimp testing for 8-wire network cables. In addition, the integrated cable length measurement allows for a quick assessment of cable lengths up to over 100 m, thereby facilitating both the installation of new connections and the diagnosis of existing cable runs.

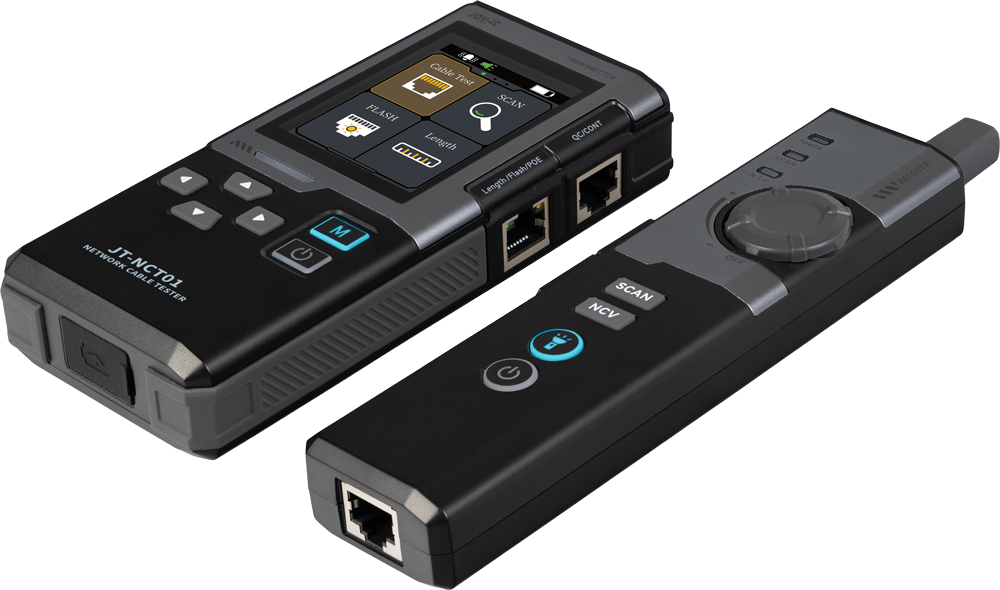

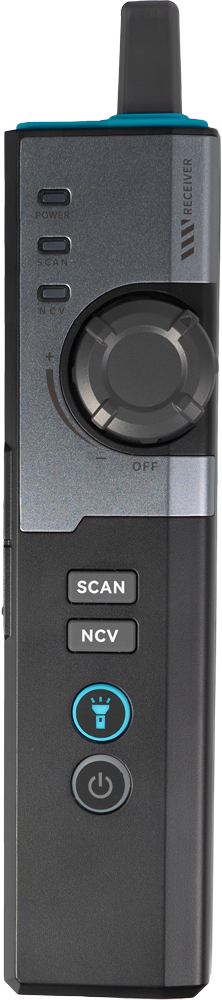

When it comes to cable location, the JT-NCT01 excels with both standard and low-interference detection modes, as well as adjustable sensitivity. This allows for reliable tracking of network and telephone cables even in challenging environments. The port blinking function also supports the quick identification of network ports, while the speed test checks connections at 10 / 100 / 1000 Mbit/s as well as duplex mode.

The feature set is rounded out by a comprehensive PoE test for detecting standard and non-standard PoE, power mode, power level, and 8-pin power supply, as well as safety and convenience features such as NCV detection and low-voltage warning. All of this makes the JT-NCT01 a reliable tool for efficient network installation, maintenance, and troubleshooting.
