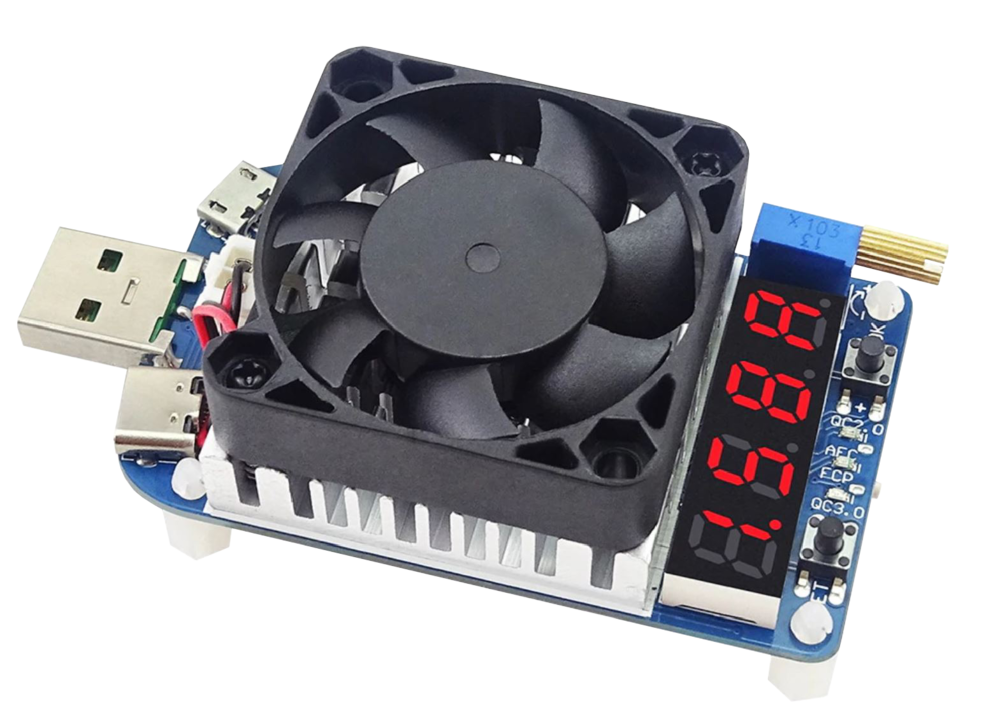

HD35 USB Load Resistor

The HD35 USB load resistor is a compact and powerful test tool for developers, technicians and quality testing in the field of mobile power supplies. With a load capacity of up to 35 W, the device is ideal for testing power supply units, USB chargers or power banks under realistic load conditions. The current consumption can be precisely regulated via an integrated trimmer from 0.25 to 5 A - flexibly adjustable depending on the application.

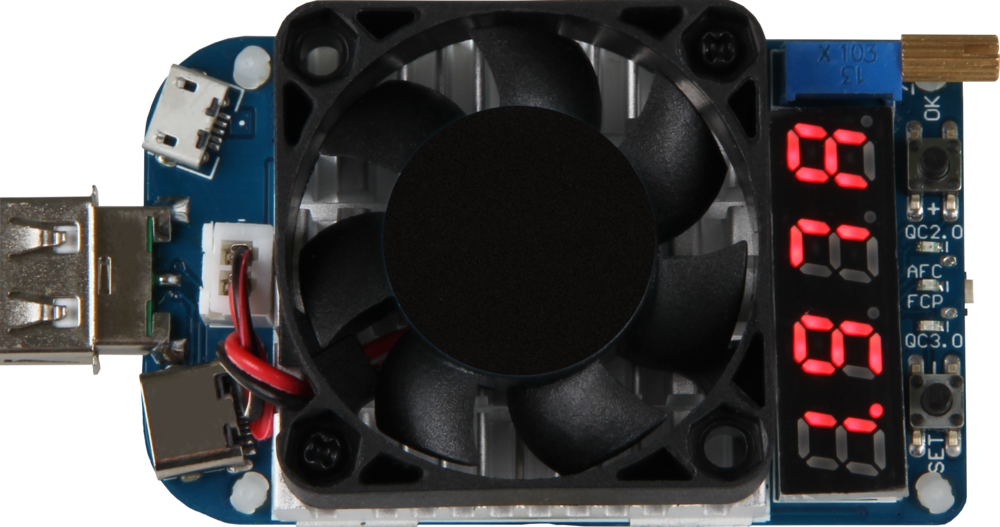

An easy-to-read, four-digit LCD display shows the current amperage in real time. In addition, two buttons allow the load to be conveniently switched on and off without disconnecting the test setup. The integrated simulation of common fast charging standards such as QC2.0 (5 V, 9 V, 20 V), QC3.0, FCP and AFC (9 V) allows practical tests of modern charging electronics.

Reliable operation is ensured by a temperaturecontrolled high-performance fan with 8000 rpm, which keeps the compact electronics within the optimum temperature range even under continuous load. In addition to the classic USB-A, the HD35 also supports micro USB and USB-C - ideal for use in modern test environments.

At just 84 × 41 × 28 mm and a weight of 52 g, the device is light, mobile and quick to use - perfect for laboratories, service operations or use in production.

Specifications

Special features

Adjustable load up to 35 W via precision trimmer,
Real-trime current display on 4-digit LED display,
Supports QC2.0, QC3.0, FCP & AFC charging simulation,
Simple load control via buttons,
Temperature-controlled high-performance fan,
Compatible with USB-A, Micro-USB & USB-C,
Compact design for laboratory & production

Operating Voltage

4 - 25V (DC)

Operating Current

0,25 - 5A

Power

35 W

Measuring Range ϑ

-10 - 40°C

Display

4 digit segment display

Display Color

Red

Fan Speed

8000 RPM +-10% | Temperature-controlled

Connections

USB 2.0, Micro USB, USB Typ-C

Additional information

Dimensions

84 x 41 x 28mm

Weight

52 g

Items shipped

JT-HD35

EAN

4250236817859

Article No.

JT-HD35
