Premium steel keyboard

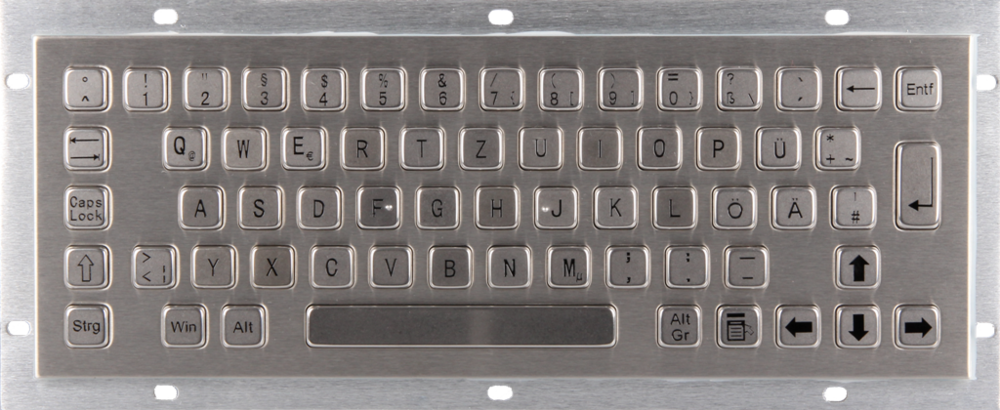

Our industrial keyboard is made of high-quality stainless steel (type 304) and has IP65 and NEMA 4X protection classes. This makes it particularly resistant to corrosion, extreme weather conditions, vandalism, dirt and abrasion. Thanks to the brushed surface and the shiny keys, our industrial keyboard has a convincing, high-quality look. It has 66 keys, QWERTZ keyboard layout and is connected to the system via USB. Due to the existing subframe with mounting holes and the seal, it is highly integrable and optimally suited for industrial / outdoor and kiosk solutions for indoor and outdoor use.

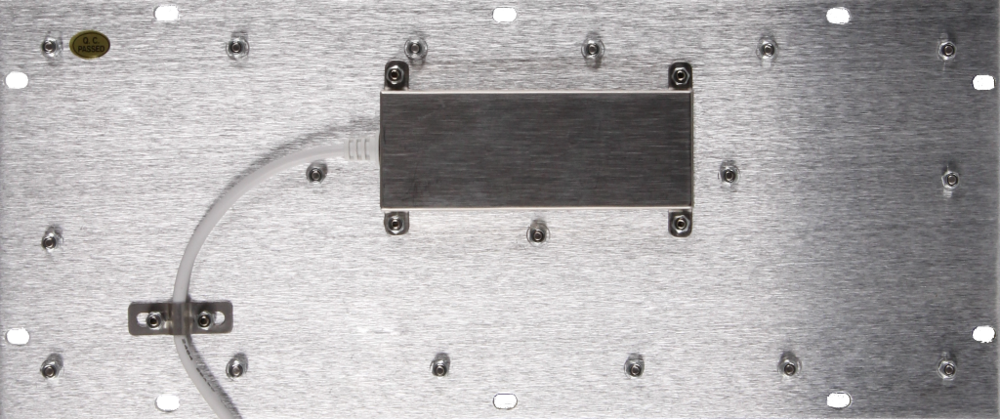

Please refer to our technical drawing for installation dimensions.

Definition of protection classes:

IP65:

Digit 1 ( 6 ): sealed against dust, protected against contact

Digit 2 ( 5 ): protected against water jet

NEMA 4X:

indoor or outdoor installation, protects against windblown dust and rain, splashing water, jets of water and corrosion; also protects against damage from external ice formation on the enclosure

Specifications

Dimensions

300 x 110 x 10 mm

Items Shipped

Premium steel keyboard with USB cable

EAN

4250236818238

Article No.

IPC-Tastatur-01

Downloads

• IPC-Tastatur-01 Technical drawing - 65,6 KB
