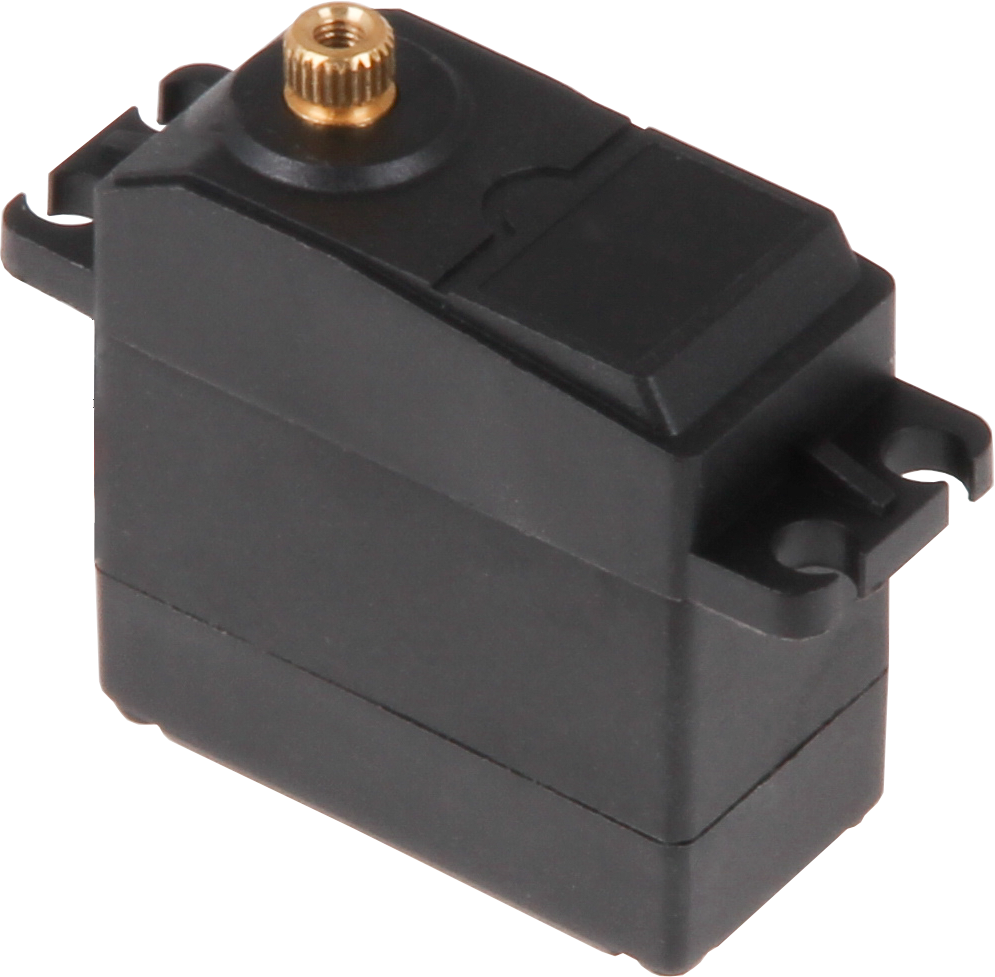

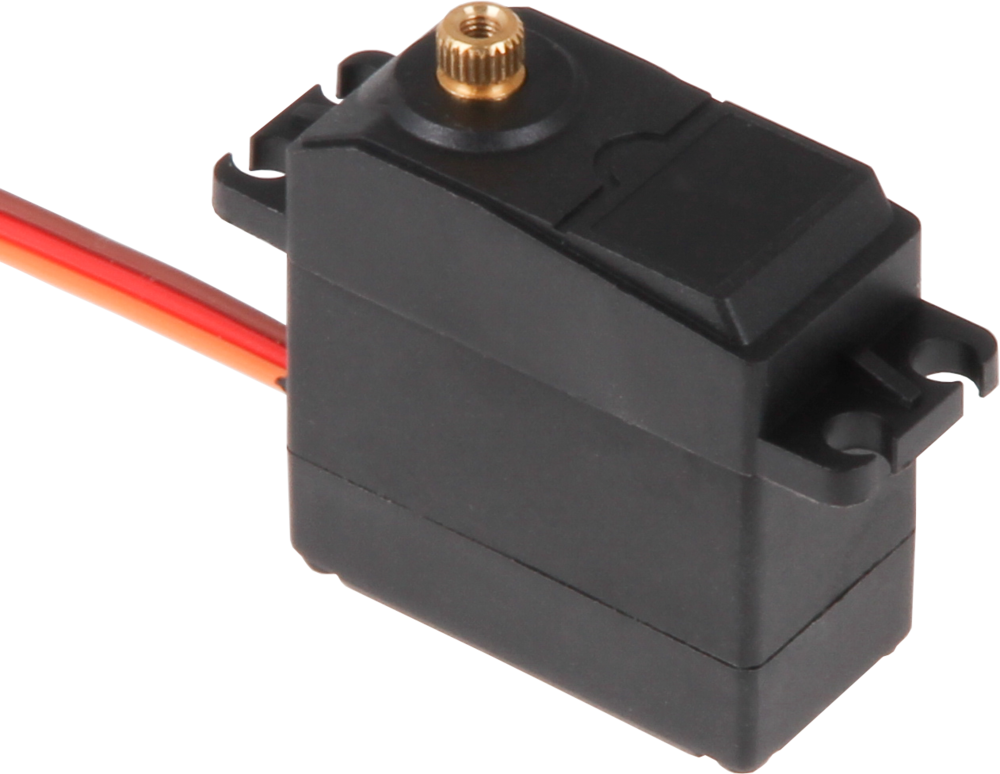

This PWM servomotor is built for loads up to 21.5 kg-cm and is very tough.

It is also a spare part for the Grab-it robot arm ( Robot02 ).

Specifications

Specifications

Model

COM-Motor02

Storage temperature

-20 °C - 60 °C

Operating temperature

-10 °C - 50 °C

Operating voltage

5 V - 7.4 V

Operating current

80 -100 mA

Speed (no load)

0.15s - 0.16s / 60°

Stall current

1,8 A - 2 A

Idle current

4 - 5 mA

Maximum torque

18.3 kg-cm - 21.5 kg-cm

Operating angle

180° (500 - 2500 μsec)

Neutral position

1500 μsec

Dimensions

40 x 20 x 40.5 mm

Weight

72 g

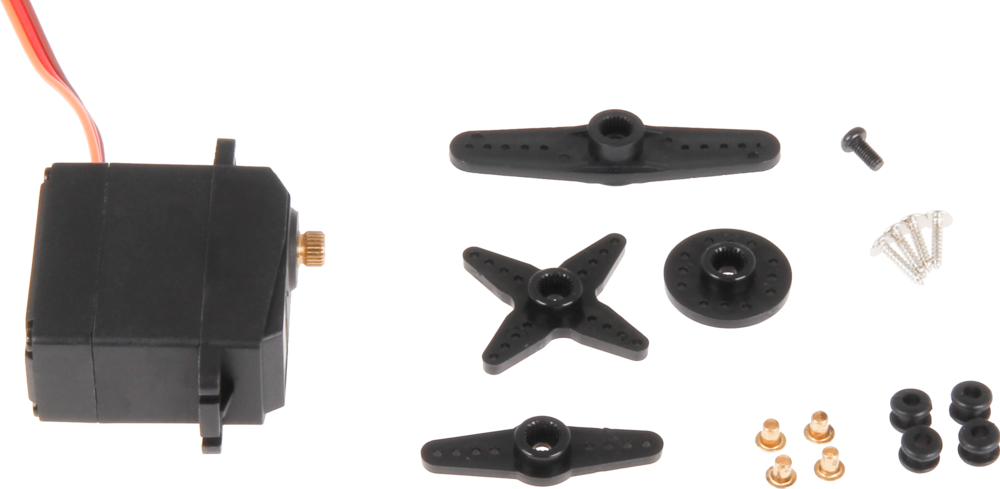

Items Shipped

Servomotor

EAN

4250236815831

Article No.

COM-Motor02
