ARD Mega2560R3

ARD Mega2560R3

ARD Mega2560R3

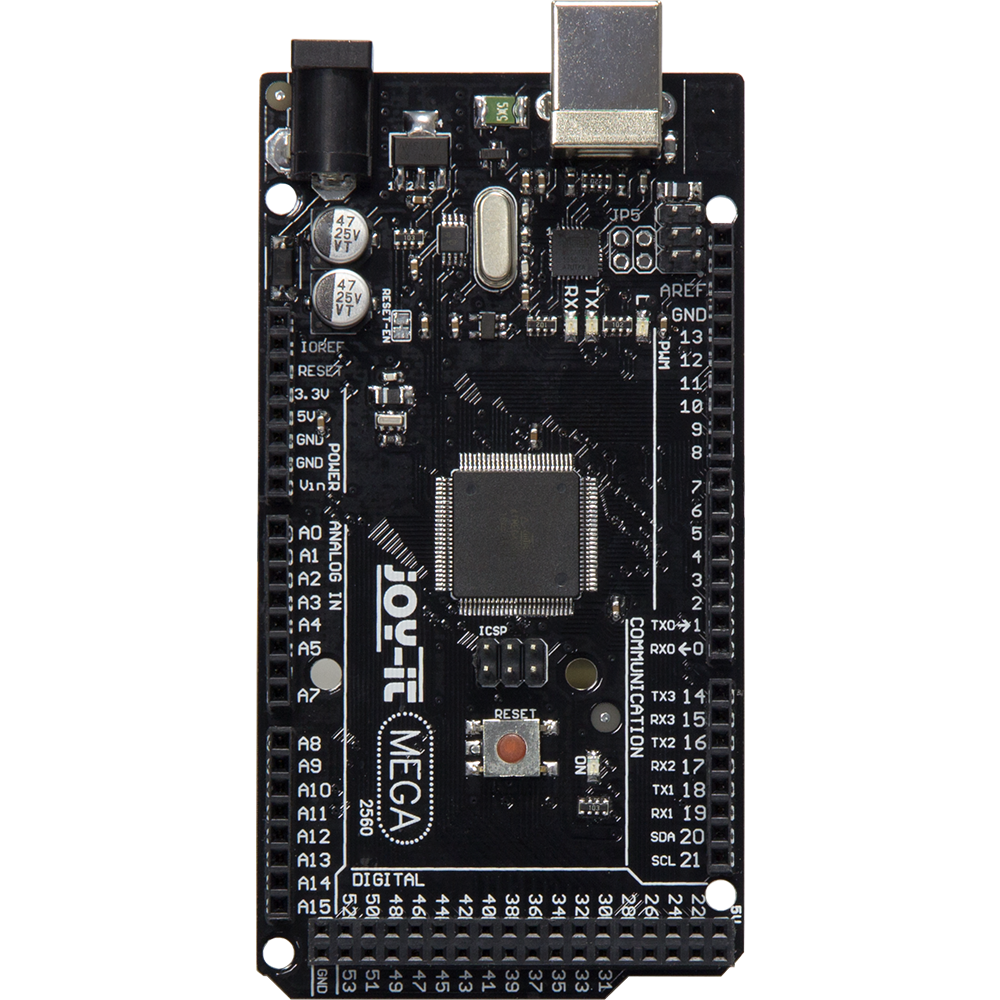

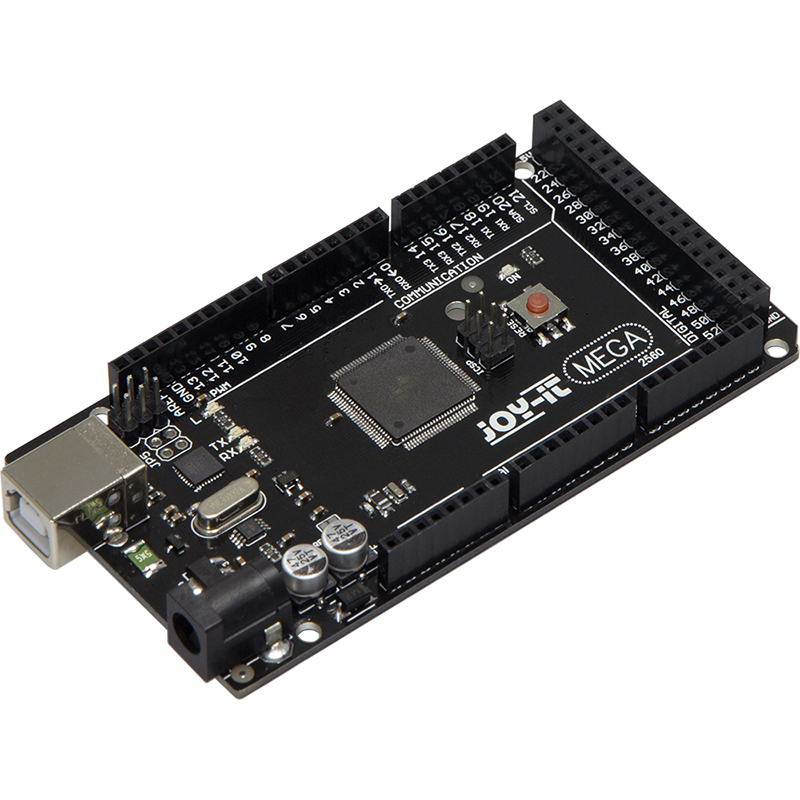

The Mega Board is the right microcontroller board for those who want to enter the programming world quickly and easily.

Its ATmega2560 microcontroller gives you enough performance for your ideas and projects. It measures 101.52 mm x 53.3 mm and with 54 digital inputs and outputs and 16 analog inputs has many connection options.

The Mega2560 board has an USB Type B connector, that you can program it quickly and easily using the familiar Arduino IDE programming environment. The Joy-IT Mega2560 with the plug-in systems and circuits can be supplied with power both via the USB port and alternatively via its own power connection.

NOTE: The MEGA2560 Board is an Arduino-compatible microcontroller with original chip, but not an original Arduino product!

Specifications

Specifications

Microcontroller

ATmega2560

Input Voltage

7 - 12 V

Digital IO

54 (14 with PWM)

Analog IO

16

Memory

256 kB (8kB for Bootloader)

SRAM

8 kB

EEPROM

4 kB

Clock Speed

16 MHz

Dimensions

101.52 x 53.3 mm

Weight

62 g

Items Shipped

ATMega2560 development board, USB-cable

EAN

4250236812366

Article No.

ARD-Mega2560R3
